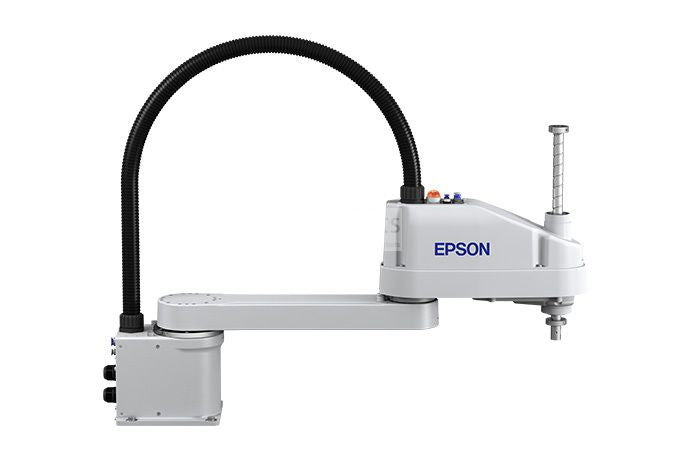

Scara Robots - Special Offer Epson LS6 SCARA Robots 700mm

Scara Robots - Special Offer Epson LS6 SCARA Robots 700mm

Series SCARA robots Epson LS6 is known for its high output, wide range, high payload, handles high speeds with maximum accuracy, This series is a more profitable of Epson scara without sacrificing performance. handles payloads from 3 kg to 20 kg and cycle times that start at 0.38 seconds, this is a compact, high performance and low cost automation solution that offers great reliability.

The Epson series LS6 SCARA robot has an arm length of 700 mm, with a high efficiency in assembly processes, transfer of parts, and pick and place among other applications, with an optimal integration and continuous production quality, maximum speeds of 7450 mm / s. Provides a high return on investment and performance.

Equipped with the powerful and simple RC700A controller

Leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.

Robot Info:

  • Maximum Load of Robot: 6 kg
  • Maximum Reach: 700 mm
  • Mounting type: Tabletop
  • Controller: RC700A


  • Joint 1,2: ±0.02 mm
  • Joint 3: ±0.01 mm
  • Joint 4: ±0.01°

Robot Motion Speed:

  • Joints 1,2: 7450 mm/s
  • Joint 3: 1100 mm/s
  • Joint 4: 2000°/s

Robot motion range:

  • Joint 1: ±132°
  • Joint 2: ±150°
  • Joint 3 stnd: 200 mm
  • Joint 3 Cleanroom model: 170 mm
  • Joint 4: ±360°

Robot Applications:

  • Automotive
  • Medical
  • Lab Automation
  • Consumer Products
  • Industrial Products
  • Telecommunications
  • Pharmaceutical
  • Packaging
  • Semiconductor
  • Electronics
