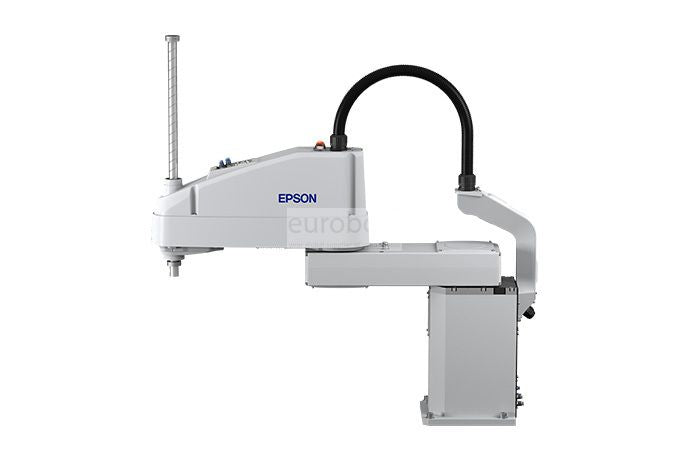

Scara Robots - Special Offer Epson LS20 Robots SCARA 800 mm

he series of robots Epson LS20 SCARA is designed to offer an optimum performance with greater capacity of load and reach at an affordable price, with an arm that goes from 800 to 1000 mm, can handle payloads of up to 20 kg and offer cycle times as low as 0.42 seconds ideal for tasks of selection and placement of large components, loading / unloading machines, palletizing, mechanical assembly and transfer of industrial parts.

The Epson series LS20 SCARA robot have an arm length of 800 mm, with high speed cycles to maximize the performance of payloads of up to 20 kg, it handles maximum speeds of 11,250 mm / s with greater precision and repeatability, This robot is a flexible and versatile solution for processes of pick and place heavy loads, packing, unloading / loading machines.

Equipped with the powerful, economical and simple controller Epson RC90

Known in the industry for its high performance and cost-effective motion control, Easy configuration via USB, higher production motion profiles and trajectory control, PowerDrive servo system provides an advanced servo control to accelerate acceleration / deceleration times with start / stop soft. fast cycles and program execution times.

Provides great flexibility and expandability, when used as stand alone, PLC Slave or with PC, can be applied to Epson G / RS series SCARAS, EZ Modules and C3 / PS / S-Series Robots 6-axis, comes integrated with Guide vision, .NET connectivity, GUI generator, DeviceNet and Profibus.

Robot Info:

• Maximum Load of Robot: 20 kg
• Maximum Reach: 800 mm
• Mounting type: Tabletop
• Controller: RC90

Repeatability:

• Joint 1,2: ±0.025 mm
• Joint 3: ±0.01 mm
• Joint 4: ±0.01°

Robot Motion Speed:

• Joints 1,2:  9940 mm/s
• Joint 3: 2020 mm/s
• Joint 4: 1400°/s

Robot motion range:

• Joint 1: ±132°
• Joint 2: ±152°
• Joint 3 stnd: 420 mm
• Joint 3 Cleanroom model: 390 mm
• Joint 4: ±360°

Robot Applications:

• Pick and place
• Machine loading/unloading
• Palletising
• Mechanical assembly
• Industrial part transfer
