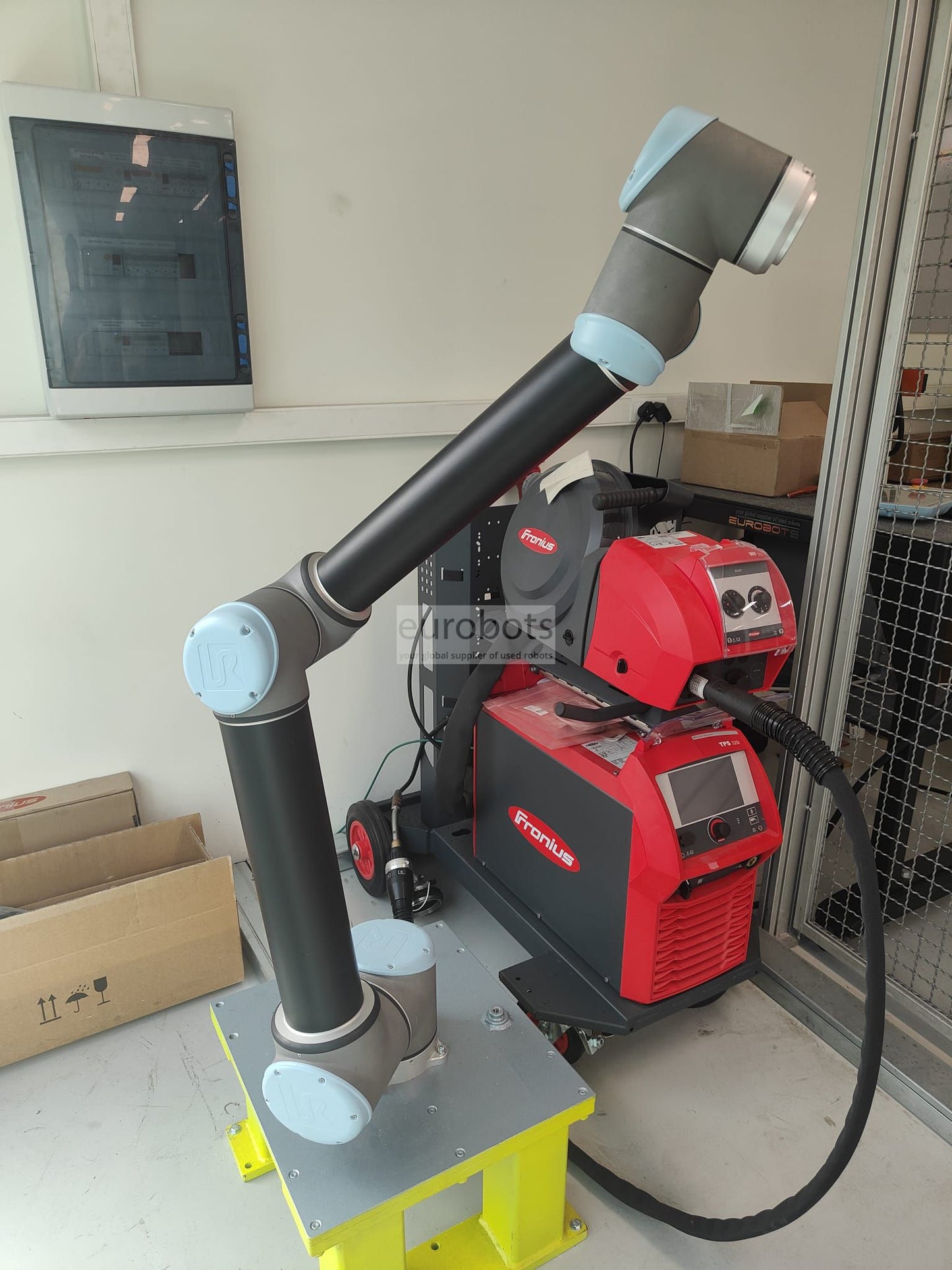

Other Robots UR10

Other Robots UR10

Collaborative robot UR10 allows to automate processes and tasks with a weight of up to 10 kg offering a high degree of precision. It has a radius of 1300 mm suitable for packaging, palletizing, assembly and pick & place processes. This robotic arm provides greater flexibility, easy programming, security and quick amortization.

Robot general specifications

  • Maximum Load of Robot:10 Kg
  • Maximum Reach: 1300 mm
  • Repeatability: ±0,1 mm
  • Controller:

Robot Motion Speed

  • Base:        ± 120°/s
  • Shoulder: ± 120°/s
  • Elbow:     ± 180°/s
  • Wrist 1:    ± 180°/s
  • Wrist 2:    ± 180°/s
  • Wrist 3:    ± 180°/s

Working range

  • Base:       ± 360°
  • Shoulder: ± 360°
  • Elbow:     ± 360°
  • Wrist 1:    ± 360°
  • Wrist 2:    ± 360°
  • Wrist 3:    ± 360°

Applications

  • Packaging
  • Palletizing
  • Assembly
  • Pick & Place
