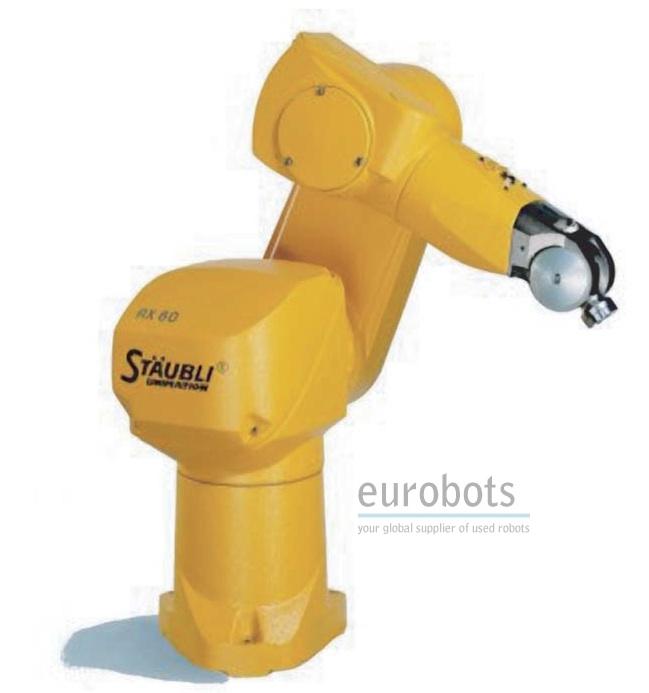

Other Robots Staubli RX60L control CS7M

Other Robots Staubli RX60L control CS7M

Year 1999-2000. Equipped with the CS7 controller which supports V+ programming language. Small payload robot. Extremmely fast and accurate.

The RX60 series industrial robots feature an articulated arm with 6 degrees of freedom for high flexibility. The spherical work envelope allows maximum utilization of cell workspace. Additional benefits are the floor, wall and ceiling mount options.
The fully enclosed structure of the robot arm (IP65) is ideal for applications in harsh environments. The specially designed wrist (IP67) resists cutting chips and is ideal for machine tool environments.

Robot Info

  • Number of axis: 6
  • Maximum Load of Robot: 1,5 Kg
  • Maximum Reach: 865 mm
  • Repeatability: +-0,02 mm
  • Controller: CS7 (V+ language)

Robot Motion Speed

  • Axis 1: 287º/s
  • Axis 2: 287º/s
  • Axis 3: 319º/s
  • Axis 4: 410º/s
  • Axis 5: 320º/s
  • Axis 6: 700º/s

Robot Applications

  •  Pick and place
  •  Assembly
