Other Robots Epson C8L Long Reach

Other Robots Epson C8L Long Reach

The series of robots C of Epson is leader in the dieño of robots of 6 axes of small and compact structure, maintaining a high standard of performance, his main characteristic is the relation between the footprint and the range of movement. It has the ability to access confined workspaces from many angles with delicate movements, providing an amazing flexibility and high speed.

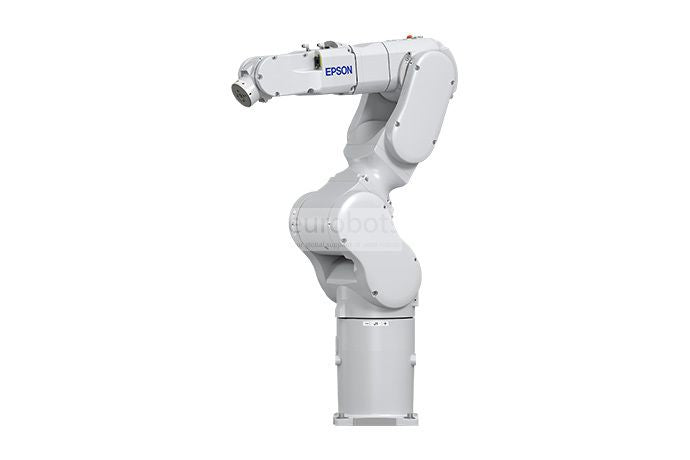

C8L EPSON 6-axis robot, known for having a greater range of approximately 901 mm, lightweight design with a structure that provides space savings on the floor. This robot handles a compact and small footprint that provide greater range of movement and cycle times up to 0.50 sec with a payload of 8 kg, has a servo system that allows high speeds of movement in acceleration / deceleration with a delicate trajectory. The C8L is extremely powerful and flexible.

Equipped with the powerful and simple RC700A controller

Leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.

Robot Info:

  • Maximum Load of Robot: 8 kg
  • Maximum Reach: 901 mm
  • Repeatability: ±0.03 mm
  • Mounting type: Tabletop
  • Controller: RC700A

Robot Motion Speed:

  • Axis 1: 294°/s
  • Axis 2: 300°/s
  • Axis 3: 360°/s
  • Axis 4: 450°/s
  • Axis 5: 450°/s
  • Axis 6: 720°/s

Robot motion range:

  • Axis 1: ±240°
  • Axis 2: -158°-+65°
  • Axis 3: -61°-+202°
  • Axis 4: ±200°
  • Axis 5: ±135°
  • Axis 6: ±360°

Robot Applications:

  • Medical
  • Lab Automation
  • Telecommunications
  • Pharmaceutical
  • Electronics
  • Automotive
