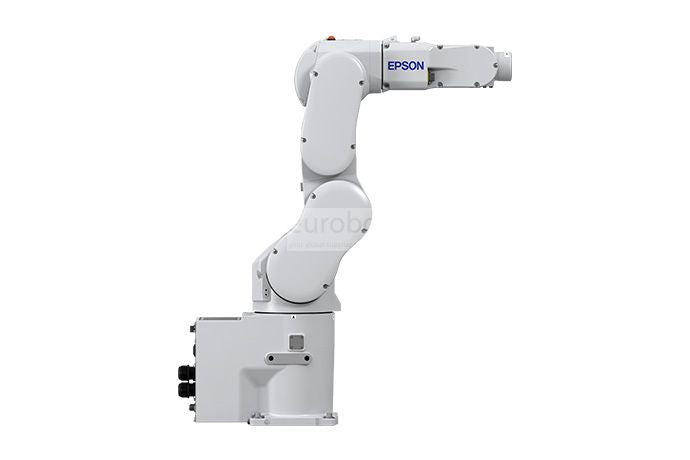

Other Robots Epson C8 Compact

The series of robots C of Epson is leader in the dieño of robots of 6 axes of small and compact structure, maintaining a high standard of performance, his main characteristic is the relation between the footprint and the range of movement. It has the ability to access confined workspaces from many angles with delicate movements, providing an amazing flexibility and high speed.

6-axis EPSON C8 robot, with a greater load capacity of up to 8Kg, arm reach 711 mm and faster cycle times of 0.48 seconds, slim figure, compact wrist with a variety of movements and less mechanical limits, its large engines and servo controls offer greater precision, speed and movement control that as a result represents a smoother movement and faster positioning. They are compact, powerful and highly flexible robots.

Equipped with the powerful and simple RC700A controller

leader in PC-based robot controls, this high-performance controller. With an open architecture design, it allows customers to add third-party software and hardware to build systems that suit their needs. It provides powerful integrated options (Vision Guide, .NET Connectivity (EPSON RC + 7.0 API), EtherNet / IP, DeviceNet, GUI Generator). The RC700A helps reduce development time, improves cycle / performance times and saves the customer money. PC-based ease of use for both advanced users and beginners. Capable of controlling up to (4) 6-axis robots, the RC700A provides superior PowerDrive servo control for super-smooth movement, fast acceleration / deceleration times and fast cycle times. It has an Epson TP3 teach pendant with menu-guided user interface, Easy connection to the controller, with safety standards such as slow speed control, 3-position enabling switch and resettable E-Stop, acts as a teaching tool of robots, and also has the ability to make changes in the parameters of the robots.

Robot Info:

• Maximum Load of Robot: 8 kg
• Maximum Reach: 711 mm
• Repeatability: ±0.02 mm
• Mounting type: Tabletop
• Controller: RC700A

Robot Motion Speed:

• Axis 1: 331°/s
• Axis 2: 332°/s
• Axis 3: 450°/s
• Axis 4: 450°/s
• Axis 5: 450°/s
• Axis 6: 720°/s

Robot motion range:

• Axis 1: ±240°
• Axis 2: -158°-+65°
• Axis 3: -61°-+202°
• Axis 4: ±200°
• Axis 5: ±135°
• Axis 6: ±360°

Robot Applications:

• Medical
• Lab Automation
• Telecommunications
• Pharmaceutical
• Electronics
• Automotive
