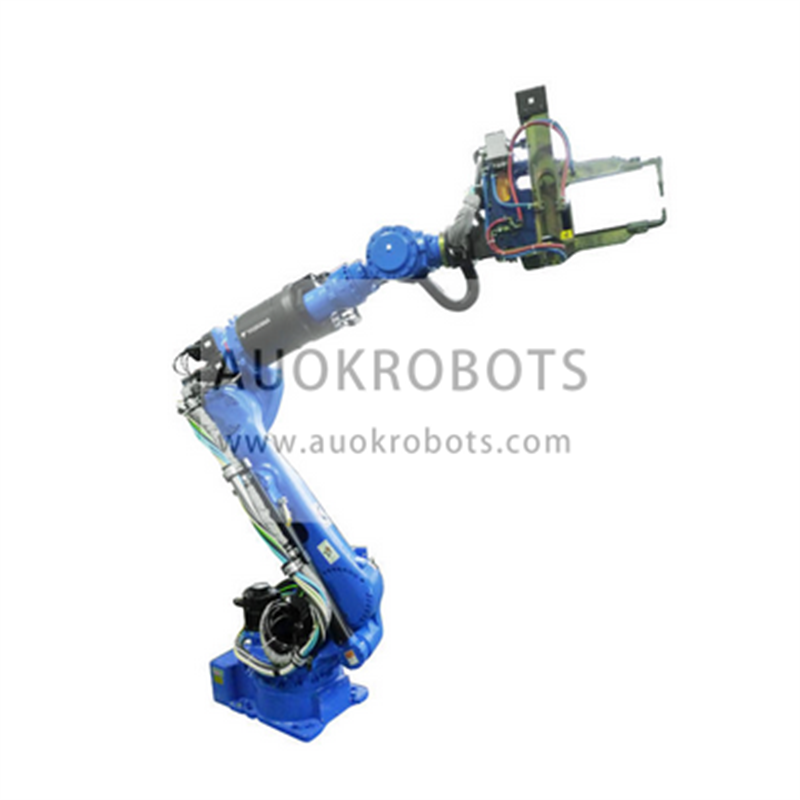

Motoman UP165-100
Motoman UP165-100
Long arm version of the popular 6 axis Motoman Yaskawa UP-165. This version features a horizontal arm reach of 3 meters at great speed. The maximum payload decreases to 100 kg due to the arm extension.
Robot general specifications
- Maximum Load of Robot: 100 Kg
- Maximum Reach: 3001 mm
- Repeatability: ±0.3 mm
- Controller: XRC
Robot Motion Speed
- Axis 1: 110º/s
- Axis 2: 110º/s
- Axis 3: 110º/s
- Axis 4: 175º/s
- Axis 5: 145º/s
- Axis 6: 240º/s
