MOTOMAN Twin EA1900N nine axis robot system with SKS welding equipment

MOTOMAN Twin EA1900N nine axis robot system with SKS welding equipment

Motoman MIG MAG arc welding robotic system consisting of:

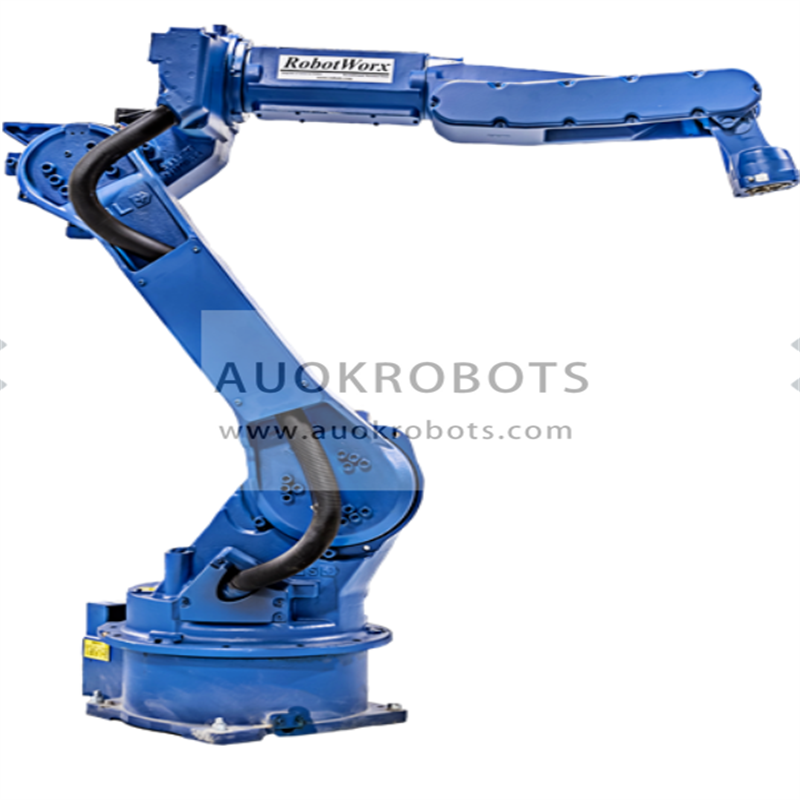

- 2 x Motoman EA1900n industrial robot, 6 axis, 6 kg payload, 1807 mm horizontal arm reach and 0.08 mm accuracy in repeatability. Special design arc welding robot with hollow wrist to improve manouveranility.

- 2 x Motoman NX100 controllers, one of them controlling 9 axis, six for the robot and three additional for the positioner

- 1 x Motoman 3 axis (H shape) positioner, with a payload of 500 kg. Nominal distance from point to point of each station: 2500 mm. Two stations with central horizontal servocontrolled rotary axis which automatically switches load and unload stations. Maximum width of the fixture: 1600 mm

- 2 x SKS Synergic power source, model LSQ5, 400 Amperes power

- 2 x SKS welding torches with anticolision

- 2 x torch cleaning station

Equipped with the powerful Yaskawa Motoman NX100 controller.

NX100 controller features

Faster, feature-packed, highly reliable and easier to use - Motoman's new NX100 robot control system has arrived. NX100 is the PC-based high performance robot controller.

The NX100 controller features a Windows® CE programming pendant with full colour LCD touch screen display. It offers high speed processing, unmatched memory (60,000 steps, 10,000 instructions), built-in ethernet and a robust PC-architecture.

The NX100 easily handles multiple tasks and can control up to four robots plus external axes (max 36 axes) and I/O devices. Advanced Robot Motion control (ARM) provides high performance path accuracy and motion control.

The control system's PC architecture offers unlimited communication with other systems via a wide range of communication protocols. The improved integrated PLC will in many cases eliminate the need for a separate PLC, saving costs at the system level.

Multiple robot control

Real time synchronisation of up to four robots and external axes (max.36 axes)

  • Jigless welding possible
  • Enables high density robot layouts
  • Reduced cycle times
  • User friendly touch screen pendant

With Windows CE operating system and a full colour LCD touch-screen display

  • Complete access tto all operations from programming to maintenance
  • Reduced programming time
  • Possibility to create your own user menus
  • Eliminates the need for separate operator's panel

Advanced robot motion (ARM) control
Dynamic calculation of robot axis torque and loan (an original Motoman development)

  • High performance path accuracy
  • Optimised robot motion & speed
  • Short pitch function
  • Collision detection

Communication features

Built-in Ethernet;Web, FTP and OPC server options

Fieldbus support of the 15 most common brands on the market

  • Easy to connect to existing networks
  • Remote monitoring and diagnostics of robot systems

Robot main features

  • Maximum Load of Robot: 15 Kg
  • Maximum Reach: 1807 mm
  • Repeatability: 0.08 mm
  • Controller: NX100

Robot Motion Speed

  • Axis S: 195º/s
  • Axis L: 170º/s
  • Axis U: 175º/s
  • Axis R: 340º/s
  • Axis B: 340º/s
  • Axis T: 520º/s

Motion range

  • Axis S: +-180º/s
  • Axis L: +155º,-100º
  • Axis U: +210º,-175º
  • Axis R: +-175º
  • Axis B: +-180/-45º
  • Axis T: +-200º
