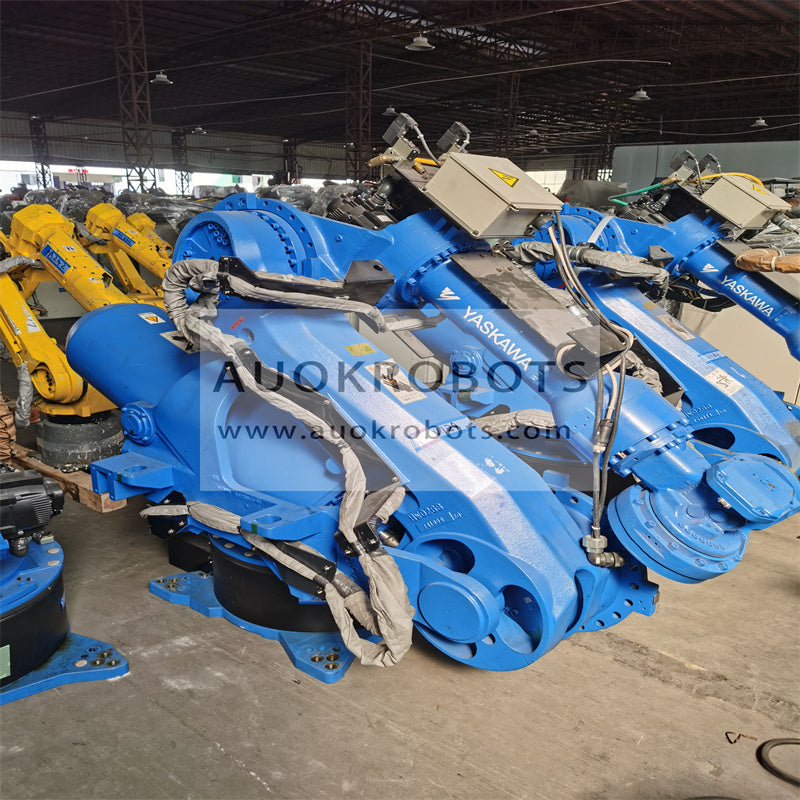

Motoman ES165RD

Motoman ES165RD

ES165RD industrial robot for spot welding for 6-axis shelving that is equipped with brakes, with excellent repeatability of ± 0.2 mm, horizontal reach capacity of up to 3140 mm and payload capacity of 165 kg, is easy to automate, Space saver, and detects parts that are difficult to access. Equipped with the DX100 controller.

Characteristics of the DX100 controller

Yaskawa's compact DX100 controller with advanced structure and process control, offering greater freedom to the user even in the concept of an automated cell:

• Multirobot control system with up to 8 robots / 72 coordinated movement axes.

• Robust PC architecture, which provides system-level control for robotic work cells.

• Connections on the back of the control cabinet to optimize the interior space

• Built-in ladder logic processing; 4,096 I / O addresses

• Variety of fieldbus network connections

• High speed server connection

• I / F panels (10) show HMI on the pendant

• Advanced Robot Motion Control (ARM) for greater productivity and minimal learning time

• Energy saving up to 25%

• Repair time (MTTR)

• Easy maintenance with function to verify the status of the reducer, hardware diagnostic life function, improved problem resolution and alarm recovery

• Compact flash slot and USB port facilitate memory backups

• Small and lightweight Windows® CE programming pendant has a color touch screen with multi-window display capability.

Main specifications
Maximum Load of Robot: 165 kg
Number of axis: 6
Maximum horizontal reach: 3140 mm
Maximum vertical reach: 4782 mm
Repeatability: ±0.2 mm
Controller: DX100
