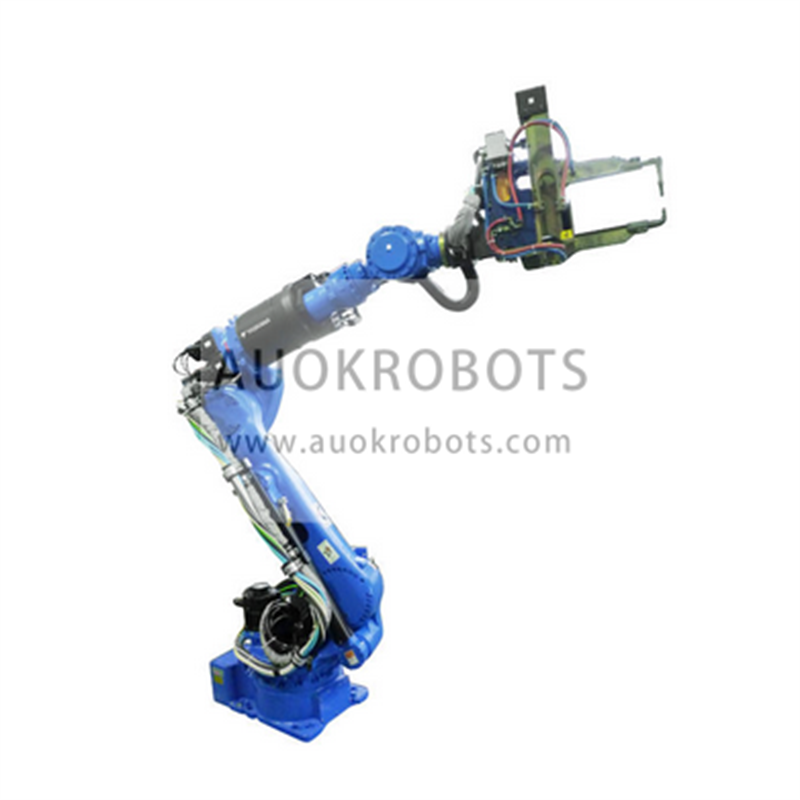

Motoman ES165N-100

Motoman ES165N-100

Information Specifications

High payload six axis industrial robot with an outstanding horizontal working envelope of 3 meters. Evolution of its predecessor, the famous UP165 . Suitable for welding, general handling, machining and also general purpose applications which required a high payload at a long working distance.

Equipped with the powerful Yaskawa Motoman NX100 controller.

Robot main features

  • Maximum Load of Robot: 100 Kg
  • Maximum Reach: 3010 mm
  • Repeatability: 0.2 mm
  • Controller: NX100

Robot Motion Speed

  • Axis S: 110º/s
  • Axis L: 110º/s
  • Axis U: 110º/s
  • Axis R: 175º/s
  • Axis B: 145º/s
  • Axis T: 240º/s

Motion range

  • Axis S: +-180º/s
  • Axis L: +76º,-60º/s
  • Axis U: +230º,-142.5º
  • Axis R: +-360º
  • Axis B: +-130º
  • Axis T: +-360º
