KUKA TITAN KR1000 KRC2 ed05

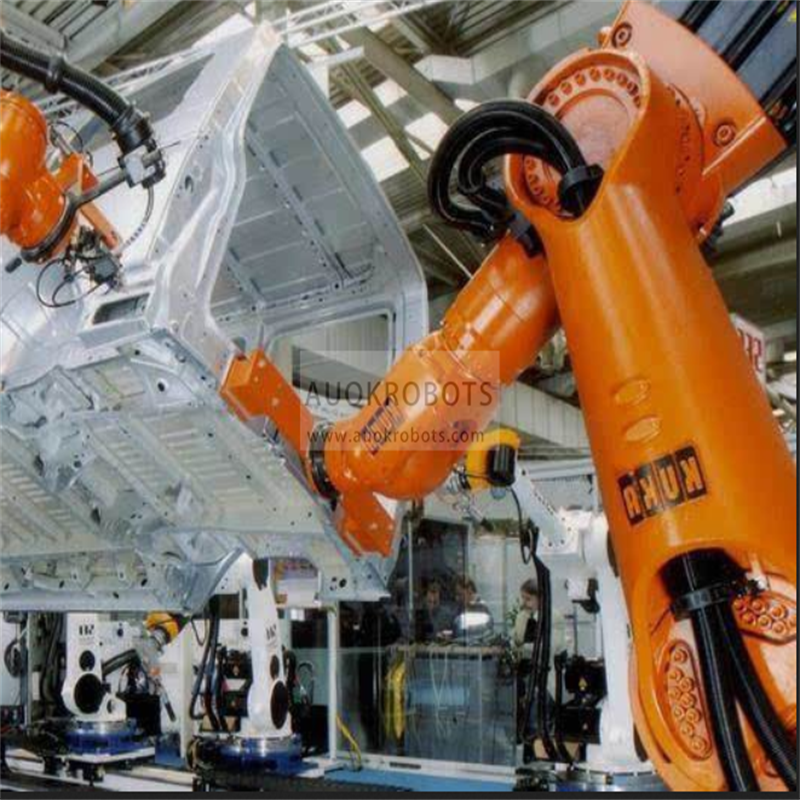

The industrial robot KR 1000 titan is designed for handling heavy loads safely and accurately, improves production and reduces costs, in combination with other linear axes you can increase your operating space effectively. It is a robot of 6 axes, a capacity of load of 1000 kg and a scope of 3202 mm, degree of protection IP65 and position of floor mount. It works with krc2 ed05 controller.

KR C2 ed05 features

• Open, network-capable PC technology
• 2 free slots for external axes
• DeviceNet and Ethernet slots for common bus systems (e.g. INTERBUS, PROFIBUS, DeviceNet) provided as standard
• Motion profile function for optimal interaction between the individual robot motors and their velocity
• Floppy disk and CD-ROM drives for data backup
• Facilities such as remote diagnosis via the Internet
• Simple operation and programming via KUKA Control Panel (KCP) with Windows user interface
• Compact control cabinet
• Ergonomic KUKA Control Panel (KCP)

Main specifications

Maximum Load of Robot: 1000 Kg
Number of axis: 6
Maximum horizontal reach: 3202 mm
Repeatability: ±0,1 mm
Controller: KR C2 ed05

Motion range (°)

Axis 1: ±150°
Axis 2: +17,5°to -130°
Axis 3: +145° to -110°
Axis 4: ±350°
Axis 5: ±118°
Axis 6: ±350°
