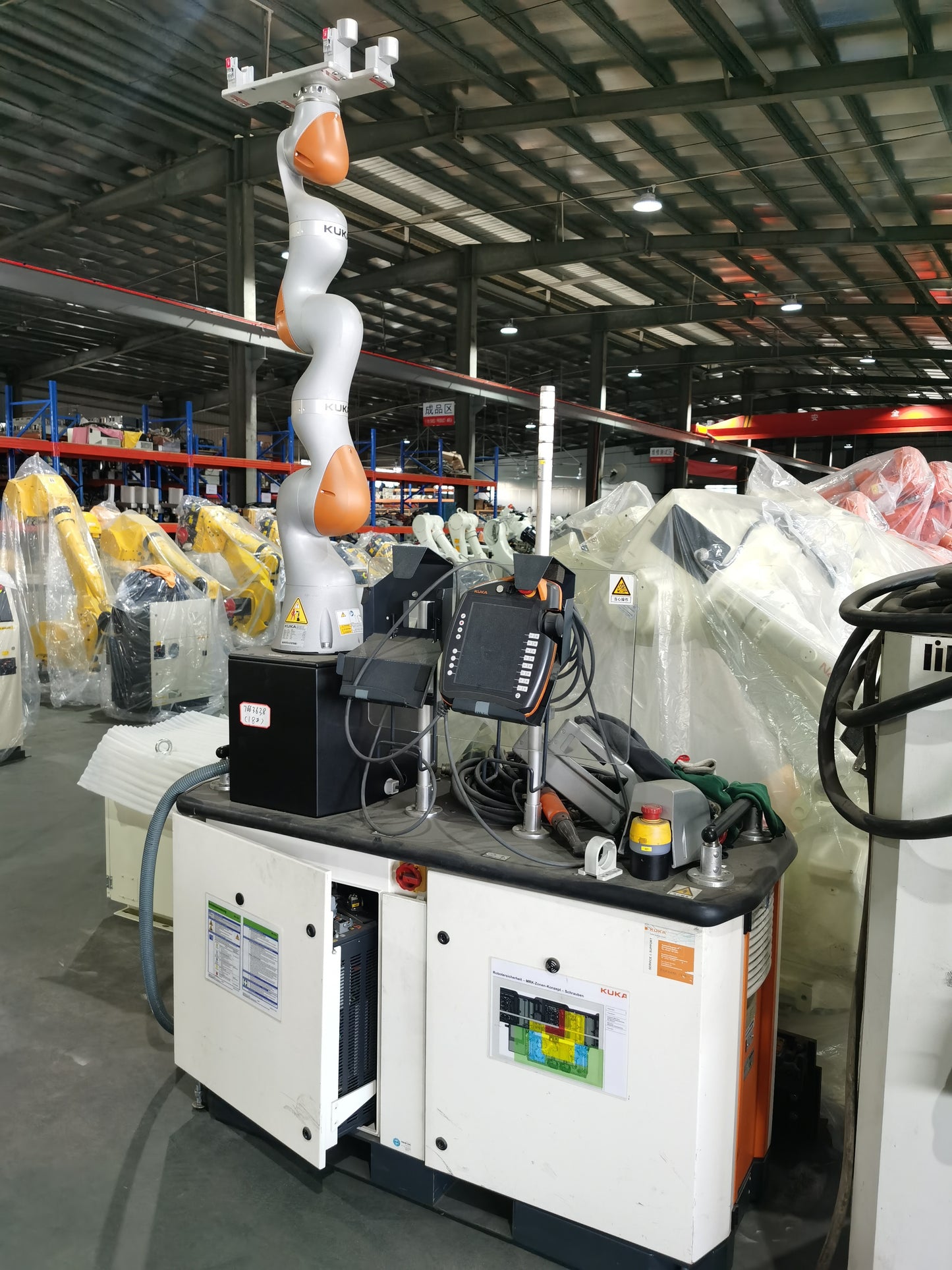

KUKA LBR iiwa 14 R820

KUKA LBR iiwa 14 R820

LBR iiwa Kuka collaborative robot with light load capacity its articulated booster sensor system empowers the robot to detect contact with objects or people providing it reduces its speed and strength avoiding shock and making it very sensitive, ideal for the manipulation of delicate pieces allowing greater profitability and efficiency and saving of space working in collaboration with the human workforce.

Kuka Sunrise Cabinet

Main specifications

VARIANTS LBR iiwa 7 R800 LBR iiwa 14 R820
Maximum Load of Robot: 7 kg 14 kg
Number of axis: 7 7
Maximum horizontal reach: 800 mm 820 mm
Repeatability: ±0,1 mm ±0,15 mm
Controller: KUKA Sunrise Cabinet KUKA Sunrise Cabinet
Mounting position Wall/Floor/Ceiling Wall/Floor/Ceiling

Motion range (°)

VARIANTS LBR iiwa 7 R800 LBR iiwa 14 R820
Axis 1: ±170° ±170°
Axis 2: ±120° ±120°
Axis 3: ±170° ±170°
Axis 4: ±120° ±120°
Axis 5: ±170° ±170°
Axis 6: ±120° ±120°
Axis 7: ±175° ±175°

Maximum speed (°/s)

VARIANTS LBR iiwa 7 R800 LBR iiwa 14 R820
Axis 1: 98°/s 85°/s
Axis 2: 98°/s 85°/s
Axis 3: 100°/s 100°/s
Axis 4: 130°/s 75°/s
Axis 5: 140°/s 130°/s
Axis 6: 180°/s 135°/s
Axis 7: 180°/s 135°/s

Robot applications

Handling machines
Measuring, testing and inspection
Handling operations
Packaging and order picking
Application of adhesives and sealants
Inserting, mounting
Assembly/disassembly operations
Coating operations
