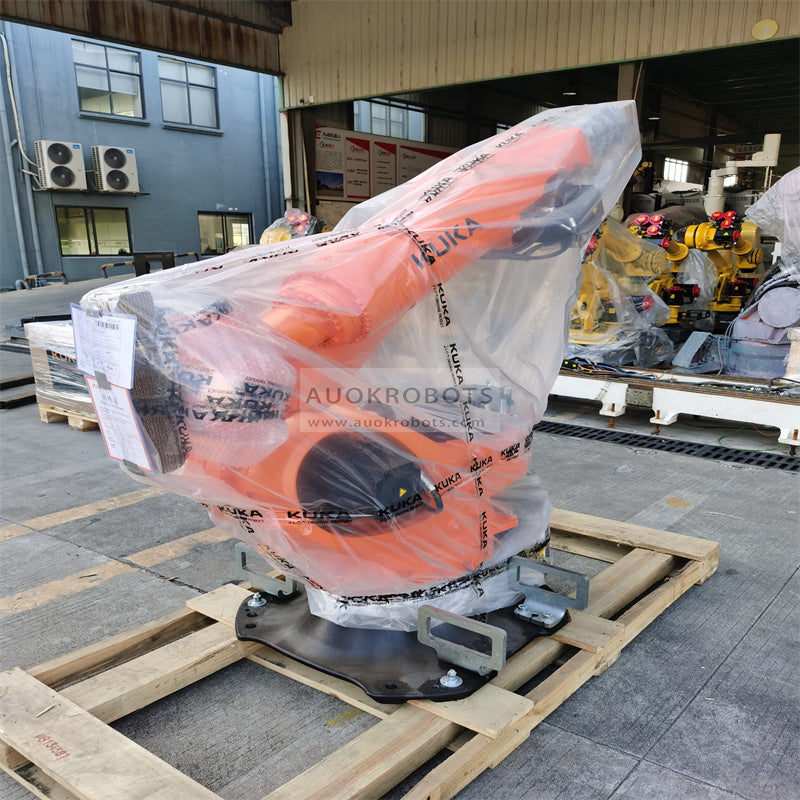

KUKA KR120 R2900 KRC4

KUKA KR120 R2900 KRC4

Six axis medium payload industrial robot. Fast and accurate robot suitable for general handling, arc welding and machining operations which require short time cycles: KR120 R2900

KR C4 - Newest Kuka controller

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

- Simple to plan, operate and maintain

- Continuation of service-proven PC-based control technologies

- Quick and easy operation thanks to continued use of familiar operator control concepts

- Expansion of the set of commands for more user-friendly path programming

- High compatibility with previous programs for the KR C2

- Safety, Robot, Logic, Motion and ProcessControl in a single control system

- Real-time communication between the dedicated control processes

- Central basic services for maximum data consistency

- Seamless integration of safety technology for entirely new fields of application

- Integrated software firewall for greater network security

- Innovative software functions for optimized energy efficiency

- Future-compatible technology platform without proprietary hardware

- Multi-core processor support for scalable performance

- Fast communication via Gigabit Ethernet

- Integrated memory cards for important system data

- Designed for 400 – 480 VAC

- New fan concept for optimized energy efficiency

- Maintenance-free cooling without filter mats

- Highest performance in the smallest possible space

- Maximum availability

Main specifications

  • Maximum Load of Robot: 120 Kg
  • Number of axis: 6
  • Maximum horizontal reach: 2900 mm
  • Repeatability: +-0.06 mm
  • Controller: KR C4

Range of motion

  • Axis 1: +/- 185º
  • Axis 2: -140 ° / -5 °
  • Axis 3: -120 ° / 155 °
  • Axis 4: +/-350º
  • Axis 5: +/-125º
  • Axis 6: +/-350°

Robot motion speed in º/s (RMS)

  • Axis 1: 136º
  • Axis 2: 136º
  • Axis 3: 120º
  • Axis 4: 292º
  • Axis 5: 258º
  • Axis 6: 284º

Robot Applications

  • Assembly
  • Pick and place
  • Material handling
  • Packing
  • Arc welding
  • Machining of soft materials
  • Coating and glueing
