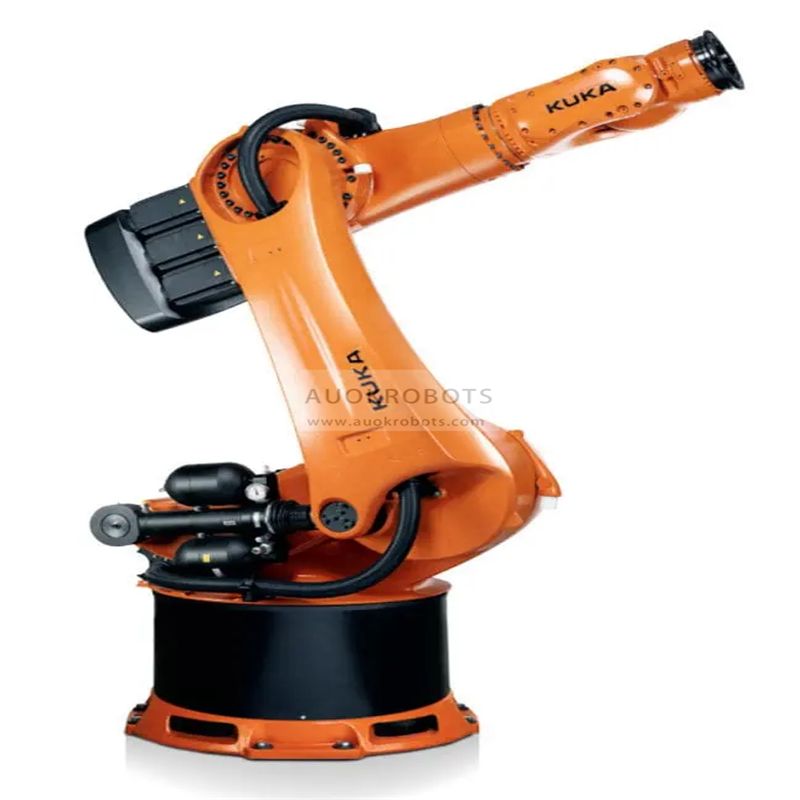

KUKA KR 600 FORTEC

KUKA KR 600 FORTEC This new generation of kuka robots are aerodynamic designed to provide an easy addition to cell designs with tight spaces, it is ideal for heavy load jobs, the KR 600 FORTEC offers high performance and maximum production quality thanks to Its versatility, power and state-of-the-art kuka technology, minimum maintenance costs, have protection level IP65 and IP67. Ideal for heavy duty with loads of up to 600 kg and an arm extension of up to 500 mm, it is available in heat, dust and water resistant variants.

KR C4 - Kuka's latest breakthrough

More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.

KR C4 features

• Simple to plan, operate and maintain
• Continuation of service-proven PC-based control technologies
• Quick and easy operation thanks to continued use of familiar operator control concepts
• Expansion of the set of commands for more user-friendly path programming
• High compatibility with previous programs for the KR C2
• Safety, Robot, Logic, Motion and ProcessControl in a single control system
• Real-time communication between the dedicated control processes
• Central basic services for maximum data consistency
• Seamless integration of safety technology for entirely new fields of application
• Integrated software firewall for greater network security
• Innovative software functions for optimized energy efficiency
• Future-compatible technology platform without proprietary hardware
• Multi-core processor support for scalable performance
• Fast communication via Gigabit Ethernet
• Integrated memory cards for important system data
• New fan concept for optimized energy efficiency
• Maintenance-free cooling without filter mats
• Highest performance in the smallest possible space
• Maximum availability

Main specs

Maximum Load of Robot: 600 kg
Number of axis: 6
Maximum reach: 2826 mm
repeatability: ±0.08
Controller: KR C4

Motion range (°)

Axis 1: ±185°
Axis 2: +20° - 130°
Axis 3: +144° - 100°
Axis 4: ±350°
Axis 5: ±120°
Axis 6: ±350°

Maximum speed (°/s)

Axis 1: 80 °/s
Axis 2: 75 °/s
Axis 3: 70 °/s
Axis 4: 70 °/s
Axis 5: 70 °/s
Axis 6: 110 °/s

Robot applications

Measurement
Inspection
Handling
Palletized
Packing
Machining
Laser welding
Spot welding
Cutting
Assembly
