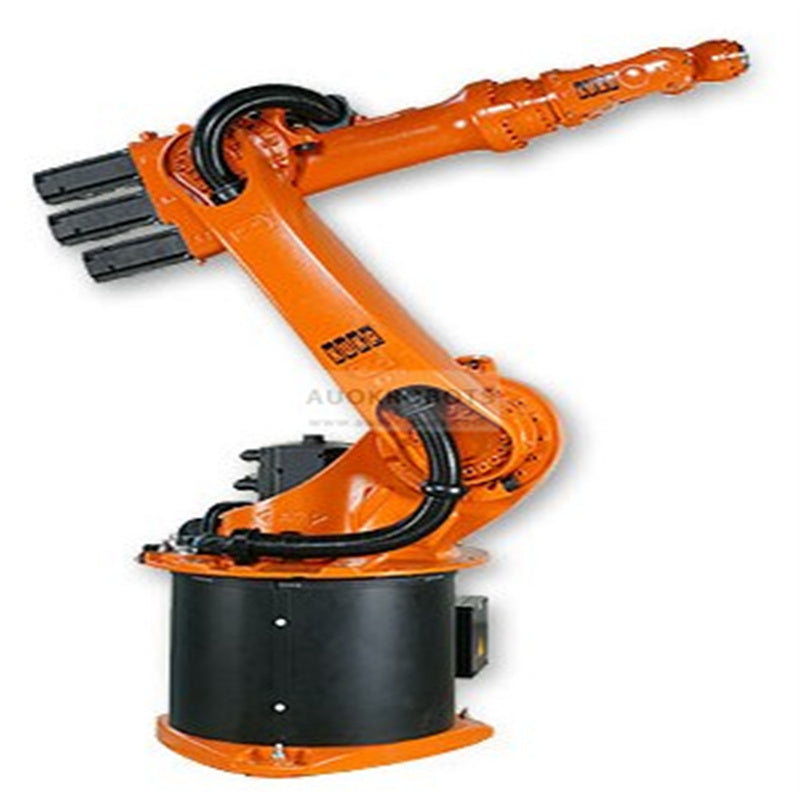

KUKA KR 6-2
KUKA KR 6-2
The KR 6 industrial robot has a low load aerodynamic design with a capacity of 6 kg and an arm reach of 1611 mm that offer excellent accessibility in small spaces and saving of space in the cells. Is characterized by flexibility and versatility since you have different specific variables that allow a flexible range of applications, thanks to its mounting options this robot demonstrates great profitability in production.
KR C4 - Newest Kuka controller
More powerful, safer, more flexible, and above all more intelligent. The revolutionary concept of the KR C4 provides a firm foundation for the automation of tomorrow. It reduces costs in automation for integration, maintenance and servicing. The long-term efficiency and flexibility of the systems are increased at the same time. For this reason, KUKA has developed a new ground-breaking, clearly-structured system architecture that concentrates on open and powerful data standards. In this architecture, all integrated controllers – from SafetyControl, RobotControl, and MotionControl to LogicControl and ProcessControl – have a joint database and infrastructure which they use and share intelligently.
| VARIANTS | KR 6-2 C | KR 6-2 W | KR 6-2 | KR 6-3 |
| Maximum Load of Robot: | 6 kg | 6 kg | 6 kg | 6 kg |
| Number of axis: | 6 | 6 | 6 | 6 |
| Maximum horizontal reach: | 1611 mm | 1611 mm | 1611 mm | 1611 mm |
| Repeatability: | ±0,05 mm | ±0,05 mm | ±0,05 mm | ±0,05 mm |
| Controller: | KR C4 | KR C4 | KR C4 | KR C4 |
| Mounting positions: | Ceiling | Wall | Floor | Floor |
