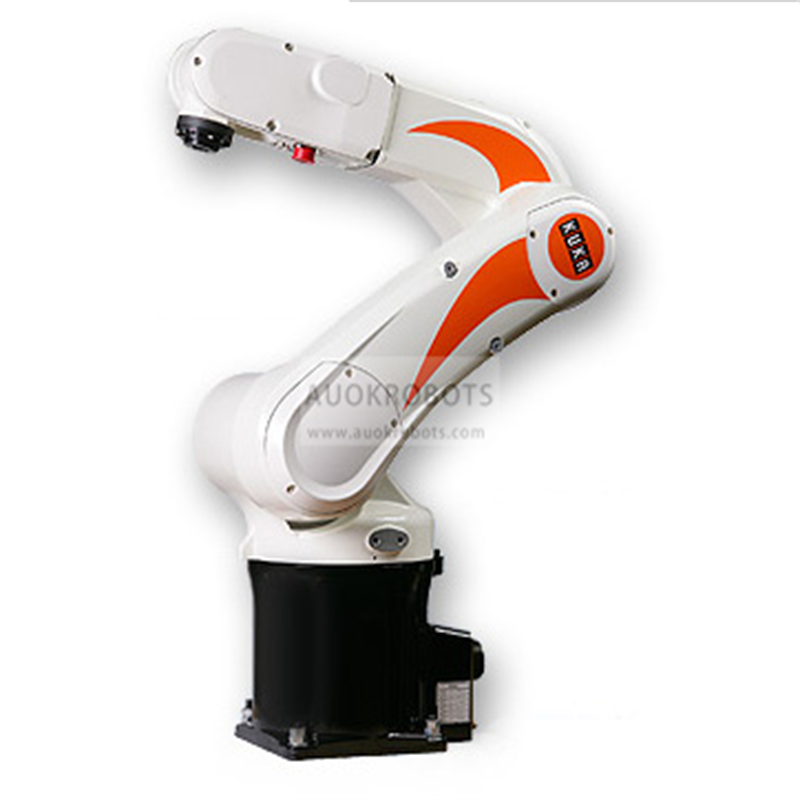

KUKA KR 5 sixx

KUKA KR 5 sixx

Small payload robot, compact, fast and accurate equipped with the state of the art KRC2 sr controller.

Maximum speed in minimum space: the KUKA Small Robots are ideal for nearly all applications that call for utmost precision and rapidity, such as for handling delicate components. Special tools can be easily adapted, as all the energy and fluid supply lines are integrated into the robots so that there is no restriction on the axis motion ranges.

Robot data

  • Number of axis: 6
  • Maximum Load of Robot: 5 Kg
  • Maximum Reach: 855 mm
  • Repeatability: +-0.03 mm
  • Controller: KR C2 Sr

Robot Motion Speed

  • Axis 1: 250º/s
  • Axis 2: 250º/s
  • Axis 3: 250º/s
  • Axis 4: 410º/s
  • Axis 5: 410º/s
  • Axis 6: 660º/s

Axis range (in ºs)

  • Axis 1: +-170º
  • Axis 2: +45º/-190º
  • Axis 3: +169º/-119º
  • Axis 4: +-190º
  • Axis 5: +-120º
  • Axis 6: +-350º
