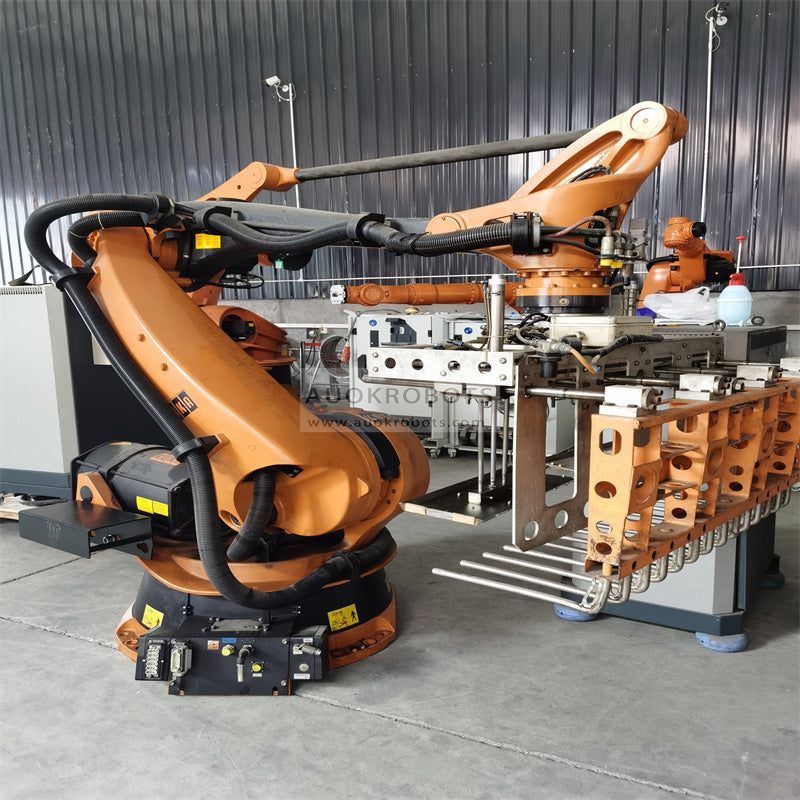

KUKA KR 180-2 PA

KUKA KR 180-2 PA

Second version of the popular 4 axis KR 180 PA-2, improved and enhanced. Design stays the same although motors and cabinets are of a newer generation. It is a special design robot used mainly for palletising featuring and fast speed in axis number one and four, which are critical in terms of cycle time for the palletizing process. An outstanding 3200 mm horizontal arm reach makes this robot the best option for your palletazing applications. Another typical use is plasma cutting or handling of 2D flat metal sheets. Another characteristic of this model is the carbon fiber upper arm which greatly enhances the stiffness of the whole unit.

Equipped with the KRC2 Ed05 controller.



Main features

  • Maximum Load of the: 180 Kg
  • Maximum horizontal arm reach: 3200 mm
  • Repeatability: 0.25 mm
  • Controller: KR C2 Ed05

Robot Motion Speed (RMS in º/second)

  • Axis 1: 105º/s
  • Axis 2: 105º/s
  • Axis 3: 95º/s
  • Axis 4: 300º/s

Main applications

  • Handling
  • Palletizing and general 2D-horizontal stacking
