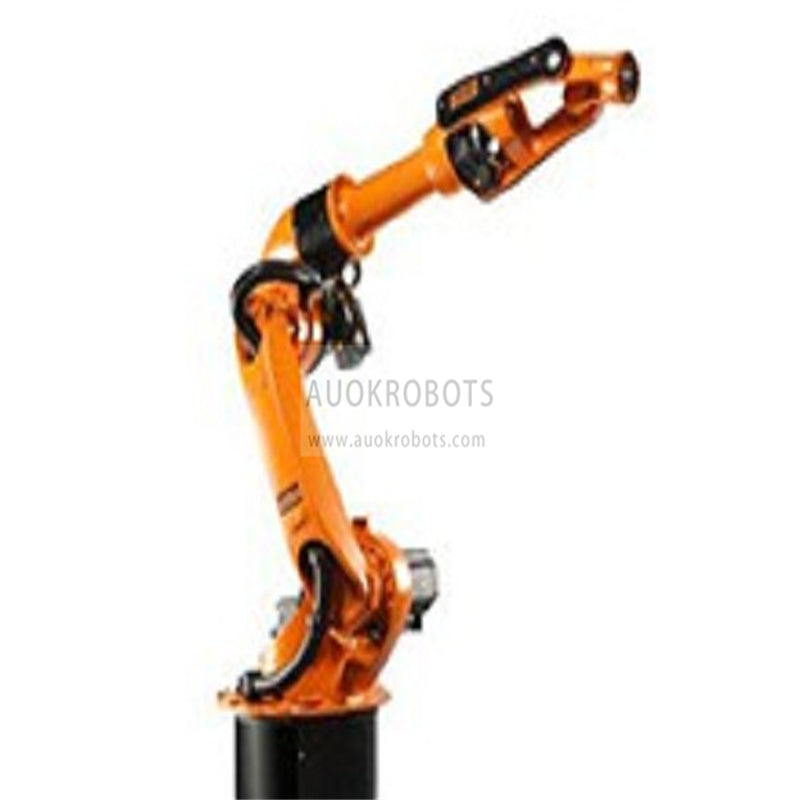

KUKA KR 16 L8-3 Arc HW

KUKA KR 16 L8-3 Arc HW

The Kuka kr16 L8 C2 ed05 are compact, thin-design robots that provide high performance thanks to their high speed and high precision, providing minimal maintenance and reducing costs. Its modernized regulator structure is optimal to move nimbly to a positioning point. It offers a variety of options for mounting angle, wall, floor, ceiling. It works with krc2 ed05 controller.


The controller KR C2 edition2005 (ed05) is assembled in accordance with your individual requirements, using standard PC components and drive technology that has proved its worth in the field of automation. This guarantees you high reliability and continuous access to the benefits of cutting-edge technology.
For example, it is possible to integrate up to two external axes in the basic cabinet. In conjunction with a top-mounted cabinet, as many as six external axes can be controlled.

The controller stands out on account of its simple maintenance, good accessibility, modular structure and service-friendly design, which allows components to be exchanged quickly and easily. A wide range of diagnostic and troubleshooting functions, such as remote servicing via the Internet, together with numerous expansion options and a comprehensive safety concept round out the spectrum of services offered for the KR C2 edition2005, giving you everything you need to optimize your production.

Axes: 6
Payload: 8.00kg
H-Reach: 2015mm
Repeatability: ±0.04mm
Controller: KRC2 ed05
