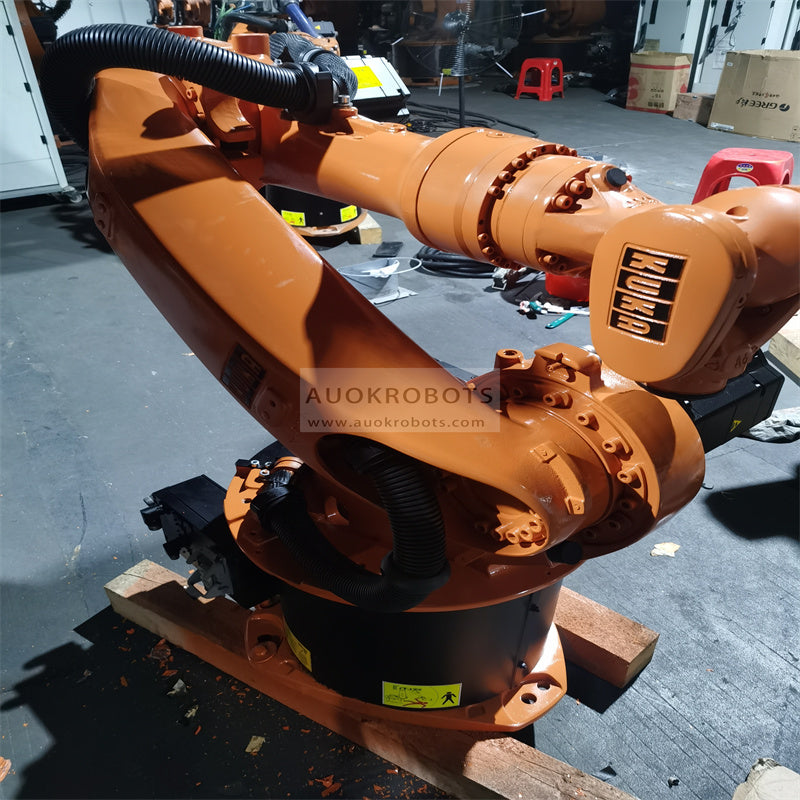

KUKA KR 16/2
KUKA KR 16/2
Due to its versatility and flexibility, the KR 16 is at home in most of the manufacturing industries. Short cycle times and high accuracy.
Mounting positions: Floor, ceiling, wall.
This robot is equipped with the KRC2 Ed05 controller on Win XP .The KR 16 robot controller makes programming easier with its Microsoft Windows interface. It is expandable, can be integrated into networks via a bus, and contains ready-made software packages.
Robot Info
- Axes: 6
- Payload: 16 kg
- H-Reach: 1610 mm
- Repeatability: ±0.1 mm
- Robot Mass: 235 kg
- Mounting: floor, ceiling, wall
Robot Motion Speed:
- Axis 1 156 °/s (2.72 rad/s)
- Axis 2 156 °/s (2.72 rad/s)
- Axis 3 156 °/s (2.72 rad/s)
- Axis 4 330 °/s (5.76 rad/s)
- Axis 5 330 °/s (5.76 rad/s)
- Axis 6 615 °/s (10.73 rad/s)
Robot Aplications:
- Machining
- Machine tending
- Polishing, grinding and deburring
- Coating and bonding
- Handling
- Measuring and testing
- Assembly
- Palletizing and order picking
- Cutting
- Welding
