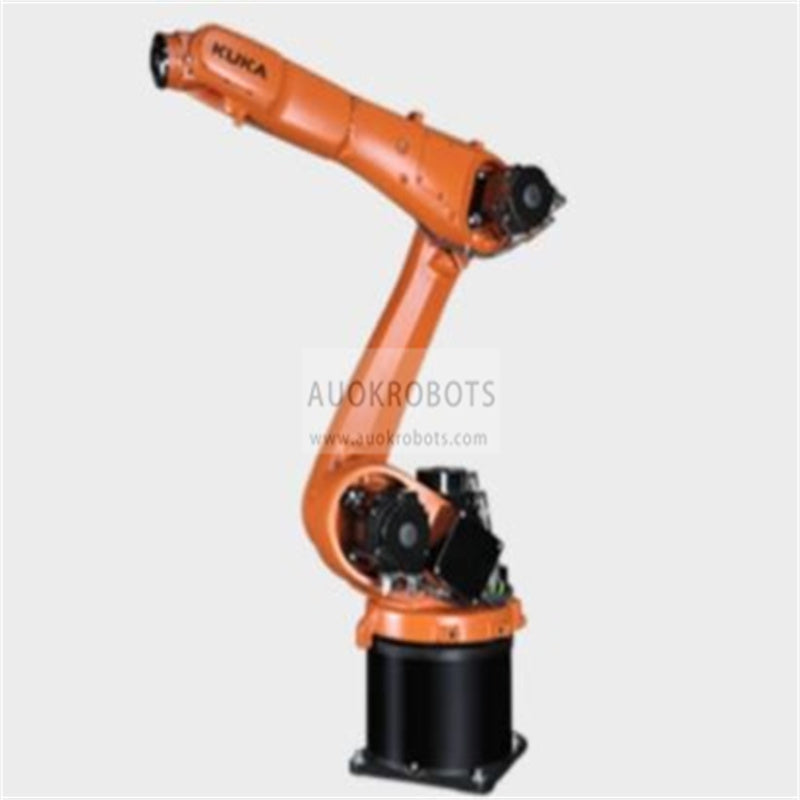

KUKA CYBERTECH nano, KR 6 R1840-2

KUKA CYBERTECH nano, KR 6 R1840-2

KR CYBERTECH nano, Highest power density and best performance robots are ideal for handling tiny components. the most diversity for the highest profit margin with the least amount of investment and energy.

KR CYBERTECH nano, KR 6 R1840-2, Are incredibly light and thin, making them suitable for a wide range of industrial applications. To maximize the dynamic performance of the robot, the KR 6 R1840-2 is built with a 6 kg payload and a reach of 1840 mm. Higher loads can be used, up to the maximum payload, with shorter distances between load centers.

Latest generation of KUKA KRC5 control unit

The new KR C5 controller shows us a new smart production concept taking it to a whole new level. KUKA's newest platform for robot controllers delivers space savings, high-efficiency performance, and resource conservation. As a result, it may be effortlessly incorporated into a variety of automation environments.

Reduced hardware and energy needs enable more applications to be developed with the highest possible efficiency. And, owing to the open platform design's interconnectedness, data becomes valuable information.

Features of the KR C5

• Durable hardware with modular cabinet system

• Ethernet and digital I / O interfaces, compatible with various cloud systems

• Easy installation, low total cost of ownership

• Wide range of options and possibilities for hardware expansion

• Control platform for software products and digital services, Smart production level.


Robot Info:

Robot

KR 6 R1840-2

Number of axis

6

Maximum Load of Robot

6 kg

Maximum Reach

1840 mm

Repeatability

± 0,04 mm

Controller

KR C5




Range of motion

Axis

KR 6 R1840-2

Axis:1

±170 °

Axis: 2

-185 ° / 65 °

Axis: 3

-137 ° / 163 °

Axis: 4

±185 °

Axis: 5

±120 °

Axis: 6

±350 °

Motion Speed

Axis

KR 6 R1840-2

Axis:1

220 °/s

Axis:2

210 °/s

Axis:3

270 °/s

Axis:4

381 °/s

Axis:5

311 °/s

Axis:6

472 °/s
