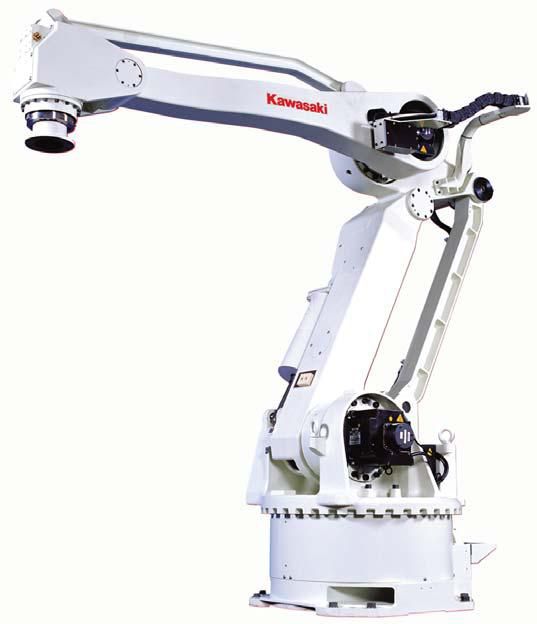

Kawasaki ZD250S
Kawasaki ZD250S
Kawasaki palletizing robots are ideal for the application of high pallets, multiple product handling; They have a wide horizontal range of up to 3,255 mm and a payload capacity of up to 700 kg providing high speed distribution processes.
Main specifications
Maximum Load of Robot: 250 kg
Number of axis: 4
Horizontal Reach: 3,255 mm
Vertical Reach: 3,075 mm
Repeatability: ±0.5 mm
Controller: E33, E43, E23
Motion range (°)
Axis JT1: ± 180°
Axis JT2: +90 /–50
Axis JT3: +15 /–120
Axis JT4: ±360°
Maximum Load of Robot: 250 kg
Number of axis: 4
Horizontal Reach: 3,255 mm
Vertical Reach: 3,075 mm
Repeatability: ±0.5 mm
Controller: E33, E43, E23
Motion range (°)
Axis JT1: ± 180°
Axis JT2: +90 /–50
Axis JT3: +15 /–120
Axis JT4: ±360°
