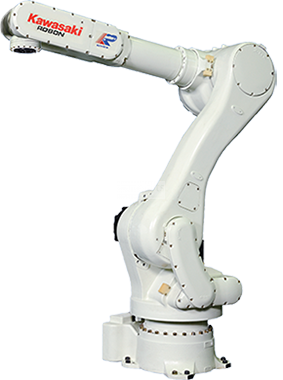

Kawasaki RD080N
Kawasaki RD080N
Kawasaki palletizing robots are ideal for the application of high pallets, multiple product handling; They have a wide horizontal range of up to 3,255 mm and a payload capacity of up to 700 kg providing high speed distribution processes.
Main specifications
Maximum Load of Robot: 80 kg
Number of axis: 5
Horizontal Reach: 2,100 mm
Vertical Reach: 3,311 mm
Repeatability: ±0.07 mm
Controller: E32, E42, E22
Motion range (°)
Axis JT1: ± 180°
Axis JT2: +140/–105
Axis JT3: +40/–205
Axis JT4: ±360°
Axis JT5: ±10°/s (operating angle of the JT5 is ±10 degrees perpendicular to the ground.)
Maximum Load of Robot: 80 kg
Number of axis: 5
Horizontal Reach: 2,100 mm
Vertical Reach: 3,311 mm
Repeatability: ±0.07 mm
Controller: E32, E42, E22
Motion range (°)
Axis JT1: ± 180°
Axis JT2: +140/–105
Axis JT3: +40/–205
Axis JT4: ±360°
Axis JT5: ±10°/s (operating angle of the JT5 is ±10 degrees perpendicular to the ground.)
