Kawasaki KJ314 paint
Kawasaki KJ314 paint

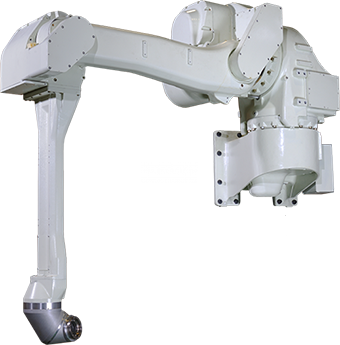

The KJ314 robot of thin and light structure for installation in wall, 7 axes offers a high degree of freedom for hard-to-access paint areas, wide range of motion and explosion-proof, its 3R hollow wrist ideal for locating internal hoses and minimize pollution.
Main specifications
Maximum Load of Robot: Wrist 15 kg, arm 25 kg
Number of axis: 7
Maximum horizontal reach: 3,100 mm
Repeatability: ±0.5 mm
Controller: E35/E45/E25
Motion range (°)
JT1: ±120°
JT2: +130°/-80°
JT3: +90°/-65°
JT4: ±720°
JT5: ±720°
JT6: ±410°
JT7: ±90°
Maximum Load of Robot: Wrist 15 kg, arm 25 kg
Number of axis: 7
Maximum horizontal reach: 3,100 mm
Repeatability: ±0.5 mm
Controller: E35/E45/E25
Motion range (°)
JT1: ±120°
JT2: +130°/-80°
JT3: +90°/-65°
JT4: ±720°
JT5: ±720°
JT6: ±410°
JT7: ±90°
