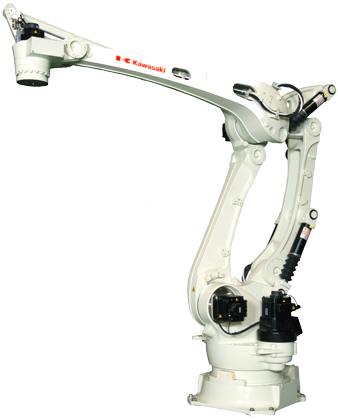

Kawasaki CP700L
Kawasaki CP700L
Kawasaki palletizing robots are ideal for the application of high pallets, multiple product handling; They have a wide horizontal range of up to 3,255 mm and a payload capacity of up to 700 kg providing high speed distribution processes.
Main specifications
Maximum Load of Robot: 700 kg
Number of axis: 4
Repeatability: ± 0.5 mm
Controller: E03
Motion range (°)
Axis JT1: ± 160°
Axis JT2: +95/-46
Axis JT3: +15/-110
Axis JT4: ± 360 °
Maximum speed (°/s)
Axis JT1: 75°/s
Axis JT2: 65°/s
Axis JT3: 65°/s
Axis JT4: 170°/s
Maximum Load of Robot: 700 kg
Number of axis: 4
Repeatability: ± 0.5 mm
Controller: E03
Motion range (°)
Axis JT1: ± 160°
Axis JT2: +95/-46
Axis JT3: +15/-110
Axis JT4: ± 360 °
Maximum speed (°/s)
Axis JT1: 75°/s
Axis JT2: 65°/s
Axis JT3: 65°/s
Axis JT4: 170°/s
