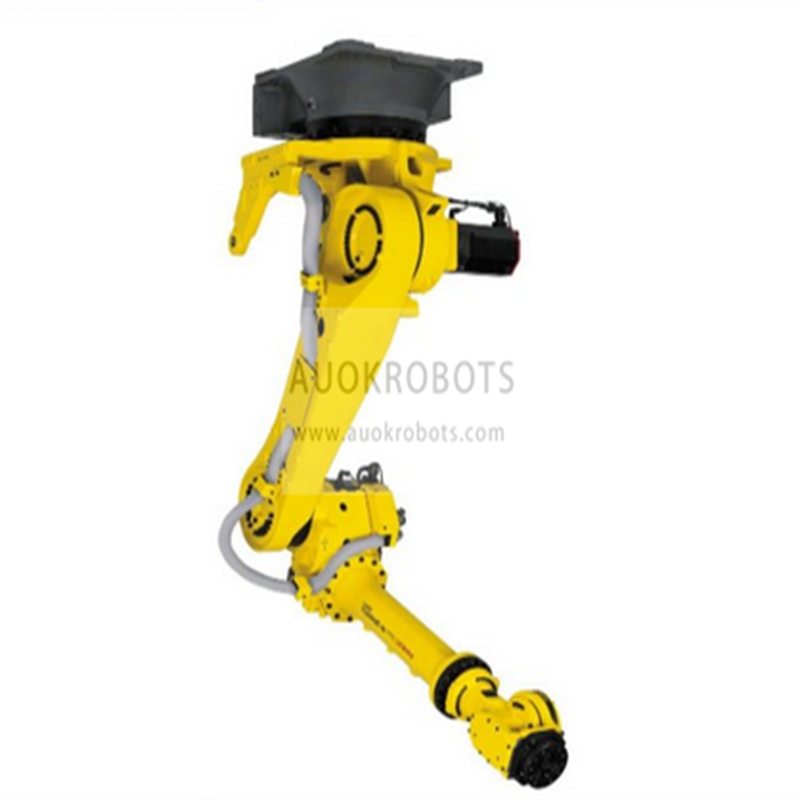

Fanuc R2000iC/220U
Fanuc R2000iC/220U
Fanuc R-2000 series designed material handling applications and spot welding, with load capacity between 100 and 270 kg, extended reach, while keeping small footprints to ensure they fit in any plant area.
Main specifications
Maximum Load of Robot: 220 kg
Number of axis: 6
Maximum horizontal reach: 2518 mm
Repeatability:± 0.05 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 370°
Axis J2: 136°
Axis J3: 312°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°
Maximum Load of Robot: 220 kg
Number of axis: 6
Maximum horizontal reach: 2518 mm
Repeatability:± 0.05 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 370°
Axis J2: 136°
Axis J3: 312°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°
