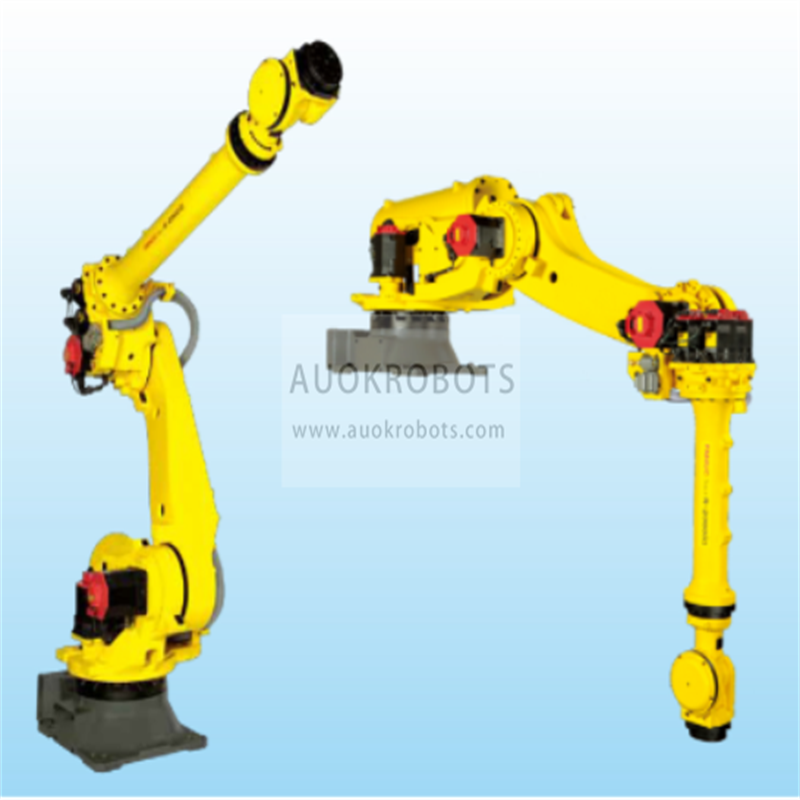

Fanuc R-2000iB/220US
Fanuc R-2000iB/220US
Fanuc R-2000 series designed material handling and spot welding applications, with load capacity of between 100 and 270 kg, extended reach, while maintaining small footprints to ensure that they fit into any plant area.
Main specifications
Maximum Load of Robot: 220 kg
Number of axis: 6
Maximum horizontal reach: 2443 mm
Repeatability: ± 0.3 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 136°
Axis J3: 234°
Axis J4: 420°
Axis J5: 250°
Axis J6: 420°
Maximum Load of Robot: 220 kg
Number of axis: 6
Maximum horizontal reach: 2443 mm
Repeatability: ± 0.3 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 136°
Axis J3: 234°
Axis J4: 420°
Axis J5: 250°
Axis J6: 420°
