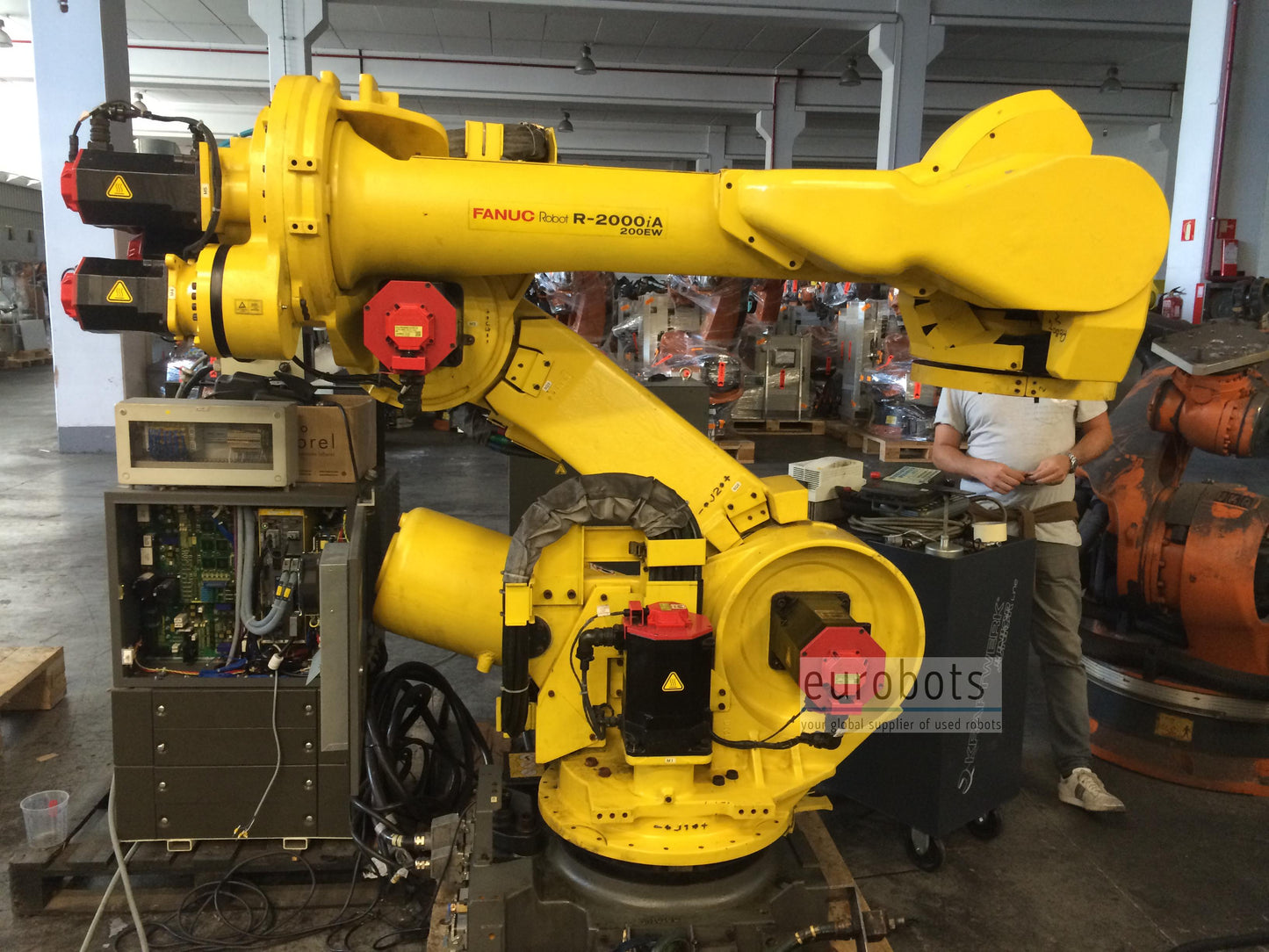

Fanuc R-2000iA 200EW
Fanuc R-2000iA 200EW
Automobile body shop version of the famous Fanuc series R2000iA industrial robot with RJ3iB controller.
The FANUC Robotics’ R-2000iA 165 and 200 EW robots are designed to provide the user with an engineered solution for body shop dress-out. The R-2000iA/EW robots allow total utilization of all axes allowable rotation since the dress-out is incorporated into the arm/wrist assembly. This product provides the customer with a process solution without restrictions for body shop applications.
Main specification
- Number of axis: 6
- Maximum Load of Robot: 200 kg
- Maximum Reach: 2650 mm
- Repeatability: 0.03 mm
- Controller:RJ3iB
Robot Motion Speed
- Axis 1: 90º/s
- Axis 2: 85º/s
- Axis 3: 90º/s
- Axis 4: 110º/s
- Axis 5: 110º/s
- Axis 6: 155º/s
Robot Motion Range
- Axis 1: 360º
- Axis 2: 135º
- Axis 3: 208º
- Axis 4: 720º
- Axis 5: 250º
- Axis 6: 440º
Robot Applications
- General industrial applications
- Spotwelding and general assembly
