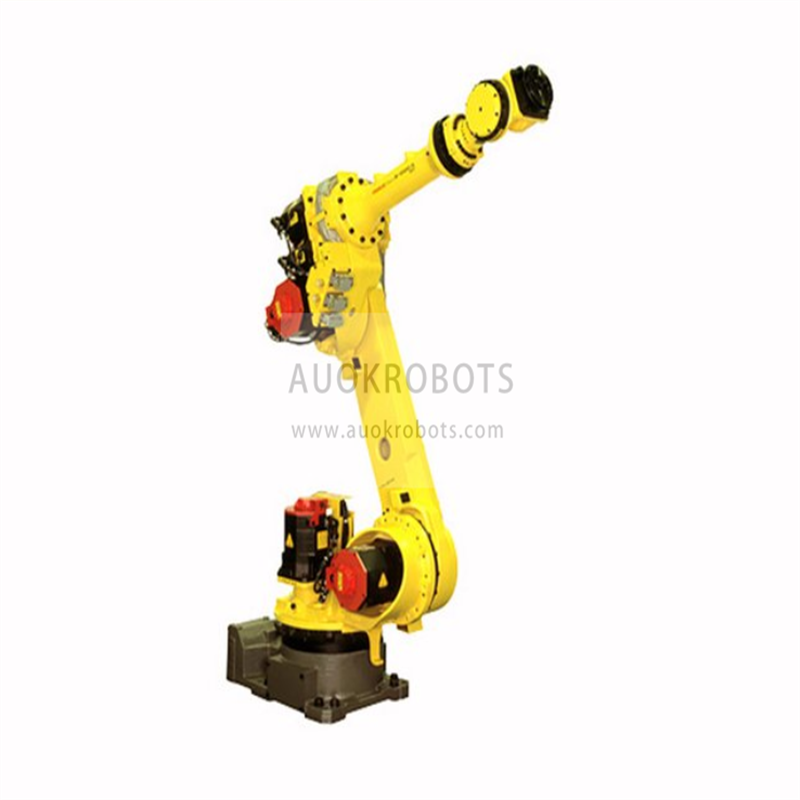

Fanuc R-1000iA/80F

Fanuc R-1000iA/80F

Information Specifications

Fanuc R-1000iA / 80F 6-axis industrial robot with medium load capacity characterized by its high speed, optimized cycle times and great flexibility is ideal for welding, handling and palletizing applications; It handles an IP67 degree of protection on the wrist ideal for humidity and dust environments.

R-30iA features

The R-30iA controller needs less than 1 minute to start (and even less with the basic software only). In case of power failure:

Main specifications

  • Maximum Load of Robot: 80 kg
  • Number of axis: 6
  • Maximum horizontal reach: 2230 mm
  • Repeatability:  ± 0.05 mm
  • Controller: R30iA

Motion range (°)

  • Axis 1: 360°
  • Axis 2: 245°
  • Axis 3: 360°
  • Axis 4: 720°
  • Axis 5: 250°
  • Axis 6: 720°

Maximum speed (°/s)

  • Axis 1: 170°/s
  • Axis 2: 140°/s
  • Axis 3: 160°/s
  • Axis 4: 230°/s
  • Axis 5: 230°/s
  • Axis 6: 350°/s

Robot applications

  • Welding
  • Handling
  • Palletizing
