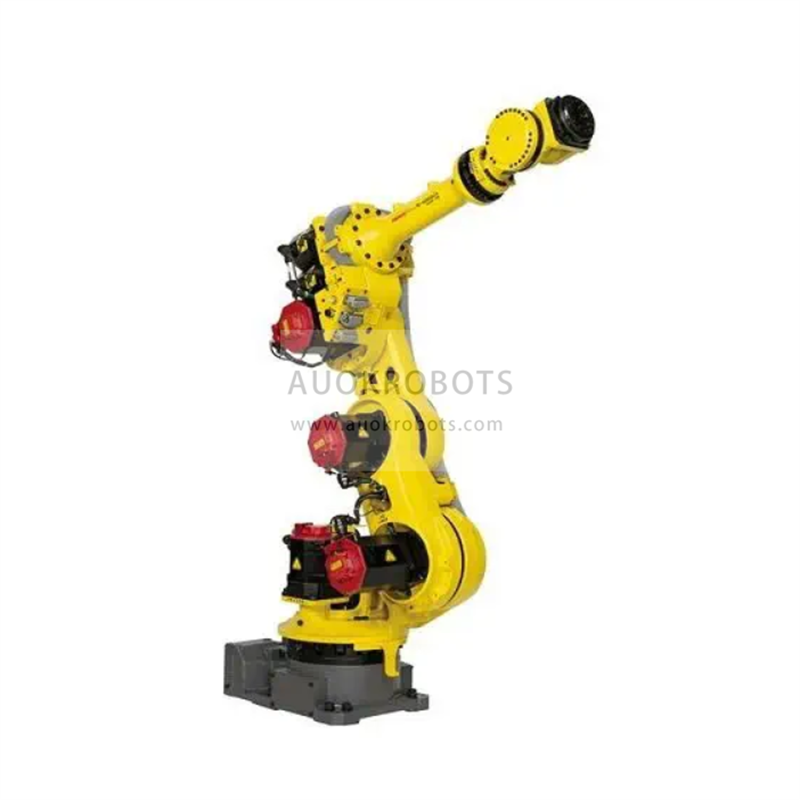

Fanuc R-1000iA/120F-7B
Fanuc R-1000iA/120F-7B
The R-1000iA series of Fanuc designed with 5 or 6 axes a handling capacity of up to 130 kg and a range of up to 2.2 meters. He is a specialist for material handling, palletizing and spot welding of medium payloads, slim space-saving design, characterized by high acceleration speeds, optimization of cycle times.
Main specifications
Maximum Load of Robot: 120 kg
Number of axis: 7
Maximum horizontal reach: 2230 mm
Repeatability: ± 0.03 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 360°
Axis J2: 200°
Axis J3: 385°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°
Axis J7: 225°
Maximum Load of Robot: 120 kg
Number of axis: 7
Maximum horizontal reach: 2230 mm
Repeatability: ± 0.03 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 360°
Axis J2: 200°
Axis J3: 385°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°
Axis J7: 225°
