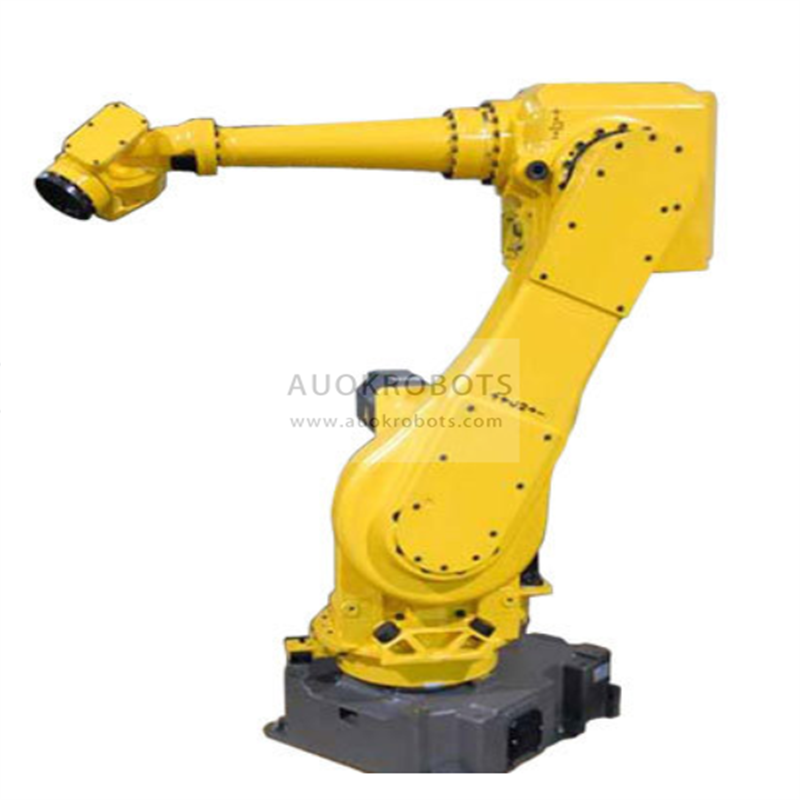

FANUC M710iW

FANUC M710iW

Information Specifications

The Fanuc M-710i and M-710iW are designed to have shared components. This reduces the complexity and costs associated with service, spare parts, and training and adds more versatility to the automation process. Both models feature a small footprint and a slim profile that facilitates placement in tight surroundings.
Floor mounting and inverted mounting are the options available for the M-710iW.

Features:

   Robot Info:

       •Axes: 6
       •Payload: 70 kg
       •H-Reach: 1893 mm
       •Repeatability: ±0.15 mm
       •Robot Mass: 845 kg
       •Structure: Articulated
       •Mounting: floor, invert

Robot Motion Speed:

  • J1 160 °/s (2.79 rad/s)
  • J2 120 °/s (2.09 rad/s)
  • J3 120 °/s (2.09 rad/s)
  • J4 225 °/s (3.93 rad/s)
  • J5 225 °/s (3.93 rad/s)
  • J6 225 °/s (3.93 rad/s)

Robot Motion Range:

  • J1 ±160°
  • J2 ±130°
  • J3 +295°, -125°
  • J4 ±270°
  • J5 ±125°
  • J6 ±360°

Applications:

  • Machine Loading
  • Material Handling
  • Part Transfer
