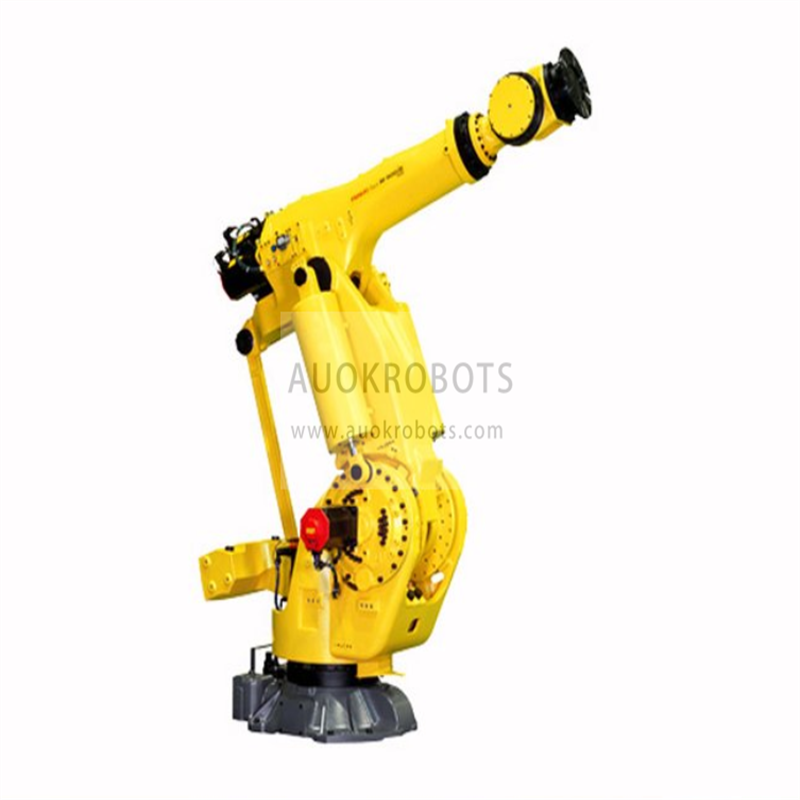

Fanuc M-900iB/700
Fanuc M-900iB/700
Fanuc M-900 series designed for the handling of heavy loads, with a highly firm structure, the wrist motors are installed on the shoulder for greater protection in operations. high load capacity between 150 and 700 kg and an approximate arm reach of 3.7 m. He specializes in a wide range of applications of handling and force such as heavy workpieces, fast palletizing and precise drilling for heavy work. Providing great versatility, maximum savings in the workspace and faster cycle times. Variety of mounting options for greater flexibility.
Main specifications
Maximum Load of Robot: 700 kg
Number of axis: 6
Maximum horizontal reach: 2832 mm
Repeatability: ± 0.1 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 154°
Axis J3: 160°
Axis J4: 720°
Axis J5: 244°
Axis J6: 720°
Maximum Load of Robot: 700 kg
Number of axis: 6
Maximum horizontal reach: 2832 mm
Repeatability: ± 0.1 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 154°
Axis J3: 160°
Axis J4: 720°
Axis J5: 244°
Axis J6: 720°
