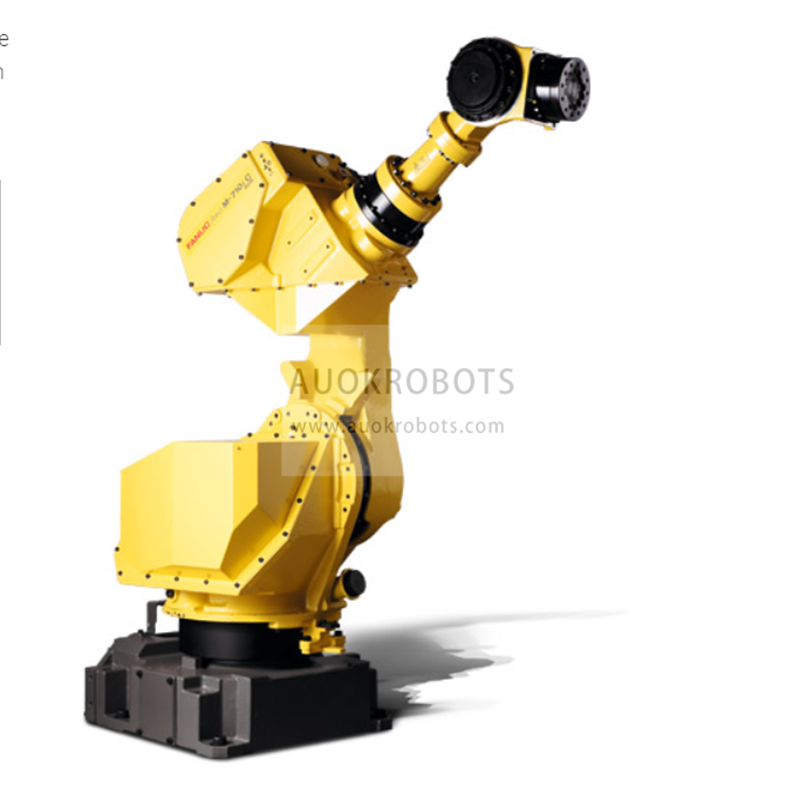

Fanuc M-710iC/50S

Fanuc M-710iC/50S

The M-710 series of Fanuc designed for the handling of medium loads, with a lightweight structure of thin wrist and solid arm. He is a specialist in a wide range of applications of handling and force with loads of up to 70 kg. providing high speed, flexibility and reliability; with degree of protection IP67 for difficult environments, offers greater precision and performance, easy access to narrow places and large work envelope thanks to its position of mounting on roof and angle.

M-710iC / 50S ultra-compact industrial robot, lightweight, high mechanical rigidity, thin wrist and high strength short arm, designed to access narrow spaces and work cells. It has an exceptional repeatability.

R-30iA features

The R-30iA controller needs less than 1 minute to start (and even less with the basic software only). In case of power failure:

Robot program restarts much quicker than with any PC-based program (non-Windows operating system).

The resume hotstart function allows restarting safely and continuing production after power failure: no need to re-do the whole movement.

Unique resume tolerance check: in case of any program interruption, the robot automatically memorises its position before failure. When the program continues, it checks whether the robot has been moved outside of a preset tolerance. This avoids unexpected movements and collisions.

Increased up-time (robot availability)


Thanks to enhanced hardware and software capacities, the R-30iA controller offers much better robot vibration control. This greatly reduces the robot’s acceleration and deceleration times, leading to reduced cycle times.


The R-30iA controller has an USB interface in the front panel and a PCMCIA interface inside of the control cabinet

2 serial interface connections (RS232C, RS422) available

This allows fast and economical back-ups and restore of data and programs.

The FANUC iPendant is an intelligent teach pendant and is available as standard (except for PaintTool). Touch screen is available as option.

  • Access via Ethernet to web sites
  • Pendant view status of peripheral equipment and other robots‘ html web server pages (when available)
  • Coloured, multi-windows display
  • Customizable screen
  • Easier work with the robot, enhanced productivity.

Main specifications

Maximum Load of Robot: 50 kg
Number of axis: 6
Maximum horizontal reach: 1359 mm
Repeatability: ± 0.04 mm
Controller: R30iA

Motion range (°)

Axis J1: 360°
Axis J2: 169°
Axis J3: 376°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 175°/s
Axis J2: 175°/s
Axis J3: 175°/s
Axis J4: 250°/s
Axis J5: 250°/s
Axis J6: 355°/s

Robot applications

Parts handling
