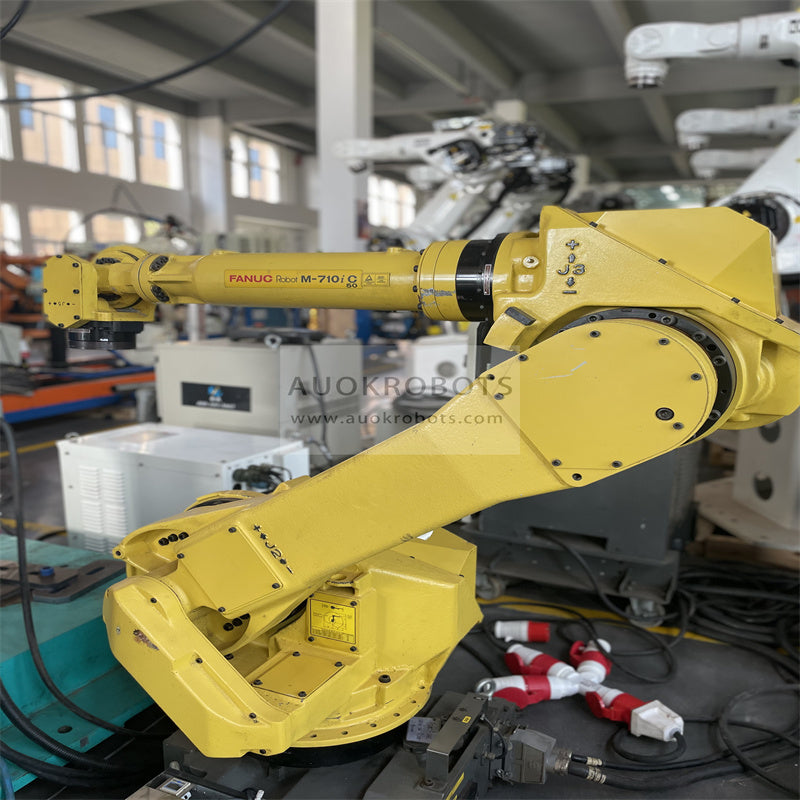

Fanuc M-710iC/50

Fanuc M-710iC/50

Information Specifications

Year 2008. Fast and accurate medium payload robot. Suitable for all shorts of handling applications, palletizing, machining. The FANUC 710ic-50 has a wrist flange and base mounting that is standard for the series, allowing for seamless backwards compatibility and a leaner manufacturing process. The 710iC/50 can lift a 50kg payload and reach 2050mm horizontally. Easier maintenance and more efficient oil sealing allow for longer in between maintenances.

Coupled with the state of the art R-30iA controller.

R-30iA features

The R-30iA controller needs less than 1 minute to start (and even less with the basic software only). In case of power failure:

Robot general specifications

  • Maximum Load of Robot: 50 Kg
  • Maximum Reach: 2050 mm
  • Repeatability: 0.07 mm
  • Controller: R-30iA

Robot Motion Speed

  • Axis 1: 175º/s
  • Axis 2: 175º/s
  • Axis 3: 175º/s
  • Axis 4: 250º/s
  • Axis 5: 250º/s
  • Axis 6: 355º/s

Motion range

  • Axis 1: +-360º
  • Axis 2: +-225º
  • Axis 3: +-440º
  • Axis 4: +-720º
  • Axis 5: +-250º
  • Axis 6: +-720º
