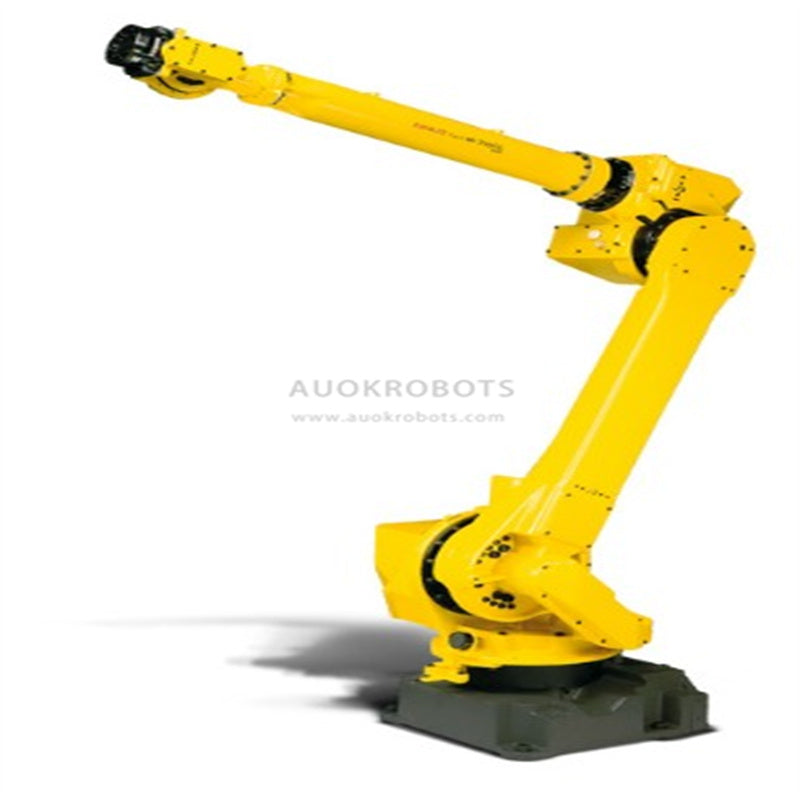

Fanuc M-710iC/45M
Fanuc M-710iC/45M
The M-710 series of Fanuc designed for the handling of medium loads, with a lightweight structure of thin wrist and solid arm. He is a specialist in a wide range of applications of handling and force with loads of up to 70 kg. providing high speed, flexibility and reliability; with degree of protection IP67 for difficult environments, offers greater precision and performance, easy access to narrow places and large work envelope thanks to its position of mounting on roof and angle.
Main specifications
Maximum Load of Robot: 45 kg
Number of axis: 6
Maximum horizontal reach: 2606 mm
Repeatability: ± 0.06 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 225°
Axis J3: 440°
Axis J4: 800°
Axis J5: 250°
Axis J6: 800°
Maximum Load of Robot: 45 kg
Number of axis: 6
Maximum horizontal reach: 2606 mm
Repeatability: ± 0.06 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 225°
Axis J3: 440°
Axis J4: 800°
Axis J5: 250°
Axis J6: 800°
