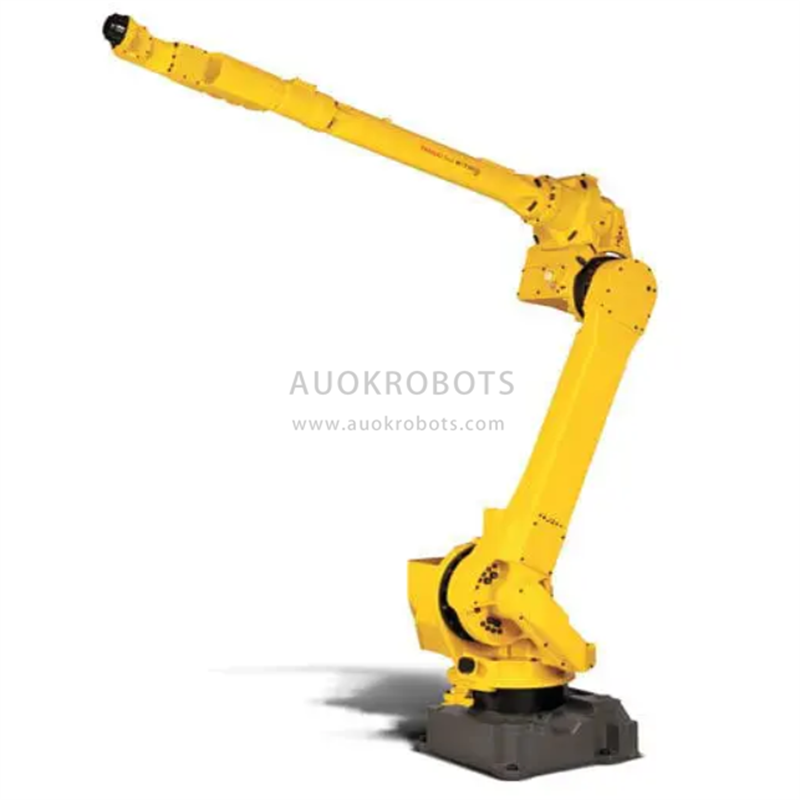

Fanuc M-710iC/12L

Fanuc M-710iC/12L

The M-710 series of Fanuc designed for the handling of medium loads, with a lightweight structure of thin wrist and solid arm. He is a specialist in a wide range of applications of handling and force with loads of up to 70 kg. providing high speed, flexibility and reliability; with degree of protection IP67 for difficult environments, offers greater precision and performance, easy access to narrow places and large work envelope thanks to its position of mounting on roof and angle.

M-710iC / 12L versatile 6-axis industrial robot with 12 kg load capacity, wrist with IP67 standard protection against dust and water. multiproposito robot of wide reach ideal for applications of sealed, welding to the arc and works in interiors of difficult access.

R-30iB control system
Main specifications

Maximum Load of Robot: 12 kg
Number of axis: 6
Maximum horizontal reach: 3123 mm
Repeatability: ± 0.09 mm
Controller: R30iB

Motion range (°)

Axis J1: 360°
Axis J2: 225°
Axis J3: 434°
Axis J4: 400°
Axis J5: 380°
Axis J6: 720°
