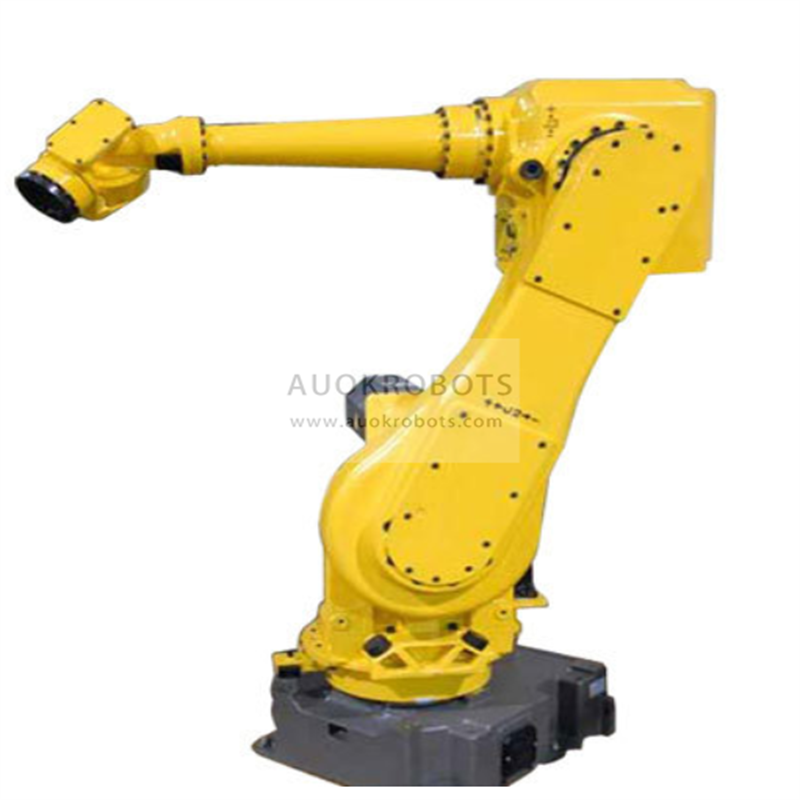

Fanuc M-710i

Fanuc M-710i

Information Specifications

Six-axis, modular construction, electric servo-driven robot designed for a variety of manufacturing and system processes. The innovative design of the FANUC M-710i provides an extremely large work envelope. Besides maximum reach, the double-jointed arm enables the M-710i to have the largest horizontal stroke in its class. Engineered for high speed and reliability, the M-710i delivers repeatable precision and flexibility with minimal maintenance.
The Fanuc R-J2 controller incorporates the most advanced and proven technology to improve total system performance while simplifying overall cell and system integration. The Fanuc RJ2 controller provides the optimal level of performance with any level of system requirements.

Features:

Robot Info:

  • Maximum Load of Robot: 45 Kg.
  • Number of axis: 6
  • Maximum Reach: 1706 mm.
  • Repeatability: 0,15 mm.
  • Controller:RJ2
  • Structure:Vertical jointed-arm type

Robot Motion Speed:

  • Axis 1: 160º/seg
  • Axis 2: 120º/seg
  • Axis 3: 150º/seg
  • Axis 4: 240º/seg
  • Axis 5: 240º/seg
  • Axis 6: 340º/seg

Axis motion ranges

  • Axis 1: 320/360º
  • Axis 2: 260º
  • Axis 3: 420º
  • Axis 4: 540º
  • Axis 5: 250º
  • Axis 6: 720º
