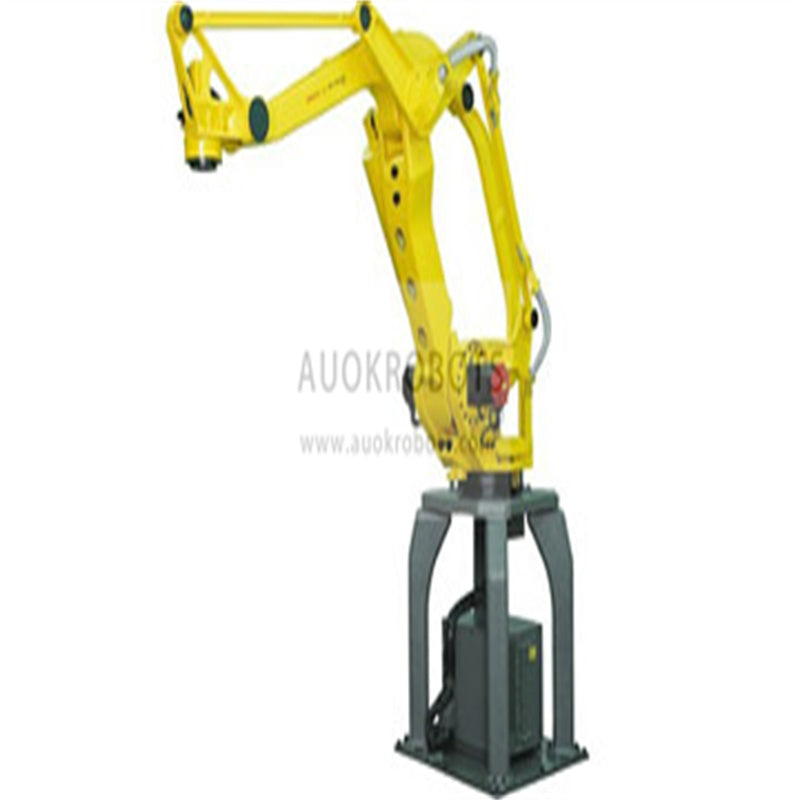

Fanuc M-420iA/40 Very Fast!

Fanuc M-420iA/40 Very Fast!

The FANUC M-420iA industrial robot is designed for a variety of high-speed manufacturing applications including packaging, palletizing, material handling, machine load/unload, and parts transfer. With its 4 axes of motion and a 40kg payload, the M420iA R30iB is an excellent palletizing robotics system, and moves with speed and accuracy. The four-axis dexterity of the M-420iA allows access to multiples packaging lines with one unit.

R-30iB control system
Main specifications

Maximum Load of Robot: 40 kg
Number of axis: 4
Maximum horizontal reach: 1855 mm
Repeatability: ± 0.2 mm
Controller: R30iB Plus

Motion range (°)

Axis J1: 320°
Axis J2: 115°
Axis J3: 100°
Axis J4: 540°
