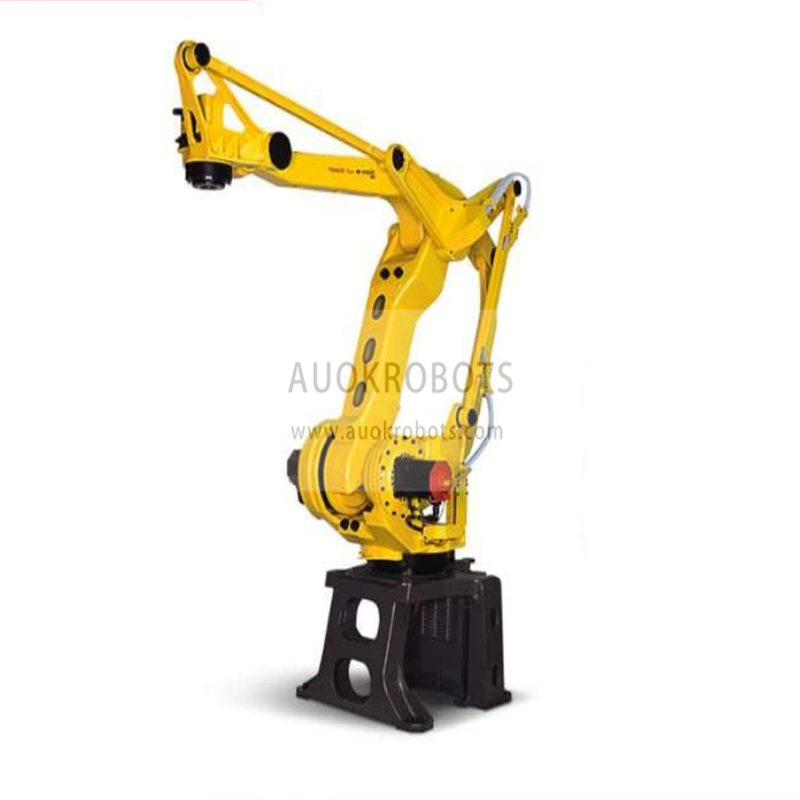

Fanuc M-410iC/315

Fanuc M-410iC/315

Industrial robot M-410iC / 315 of 4 axes of compact structure with a design of high precision and handling at high speed of payloads of up to 315 kg. It provides greater performance in palletizing applications and loading/unloading can stack pallets up to 2 m high, highly reliable thanks to its hollow wrist that allows the internal routing of the cable to avoid interferences.

The M-410 series from Fanuc specializes in high performance palletization and handling with 700 kg load capacity and 3 m in arm reach. It offers a great work envelope. It can handle large tweezers and heavy loads at maximum speed. Internal wiring through the wrist for safety. There is the integrated base model with controller and pedestal and without pedestal saves space and facilitates assembly and transport.

R-30iB control system
Main specifications
Maximum Load of Robot: 315 kg
Number of axis: 4
Maximum horizontal reach: 3143 mm
Repeatability: ± 0.5 mm
Controller: R30iB
Motion range (°)

Axis J1: 360°
Axis J2: 144°
Axis J3: 136°
Axis J4: 720°
