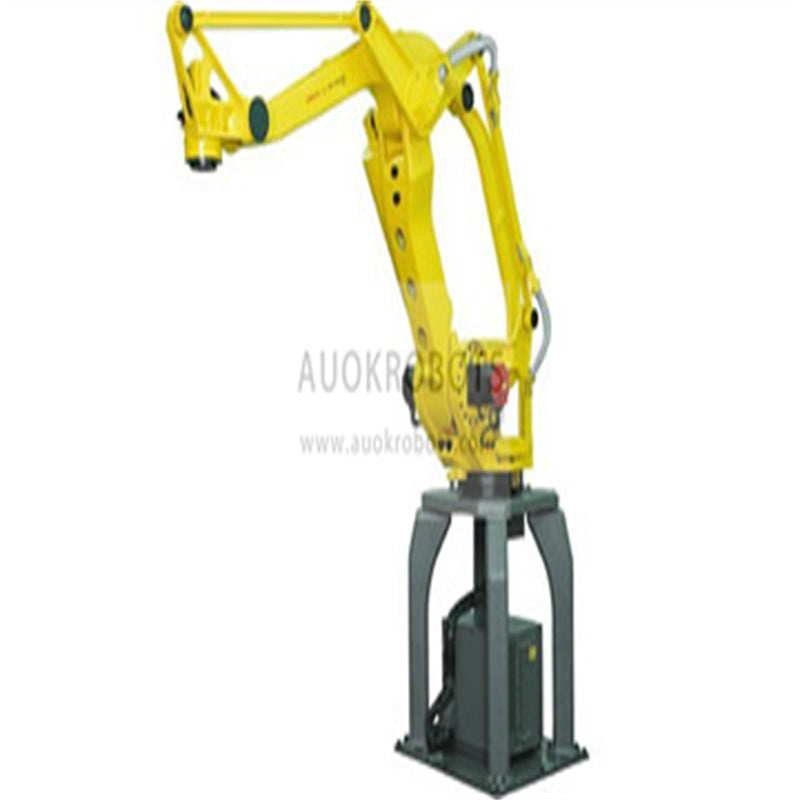

Fanuc M-410iB/140H
Fanuc M-410iB/140H
The M-410 series from Fanuc specializes in high performance palletization and handling with 140 kg load capacity and 3 m in arm reach. It offers a great work envelope. It can handle large tweezers and heavy loads at maximum speed. Internal wiring through the wrist for safety. There is the integrated base model with controller and pedestal and without pedestal saves space and facilitates assembly and transport.
Main specifications
Maximum Load of Robot: 140 kg
Number of axis: 5
Maximum horizontal reach: 2850 mm
Repeatability: ± 0.2 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 155°
Axis J3: 112°
Axis J4: 20°
Axis J5: 720°
Maximum Load of Robot: 140 kg
Number of axis: 5
Maximum horizontal reach: 2850 mm
Repeatability: ± 0.2 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 155°
Axis J3: 112°
Axis J4: 20°
Axis J5: 720°
