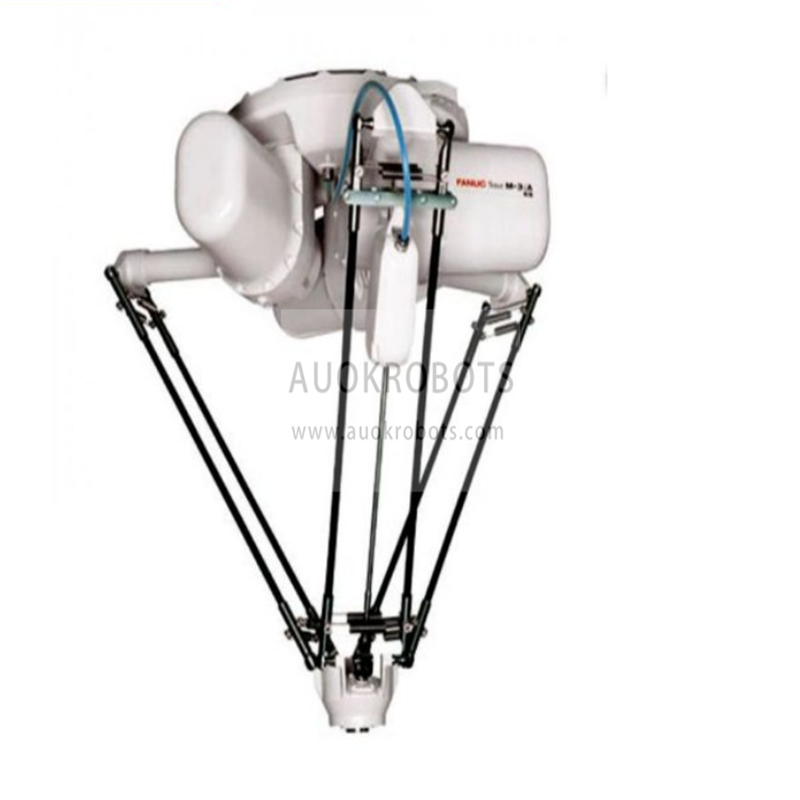

Fanuc M-3iA/6A
Fanuc M-3iA/6A
The Fanuc M-3iA series designed for high-speed operations increasing the versatility in the handling of small parts, have a presentation of 3, 4 or 6 axes for high levels of performance, parallel link structure and wide range of work. IP67 standard protection makes this series ideal for environments with demanding hygiene standards such as the food, pharmaceutical and electronic industries.
Main specifications
Maximum Load of Robot: 6 kg
Number of axis: 6
Maximum horizontal reach: 1350 mm
Repeatability: ± 0.1 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [Ø 1350 x 500] in mm by height in mm
Axis J4: 720°
Axis J5: 300°
Axis J6: 720°
Maximum Load of Robot: 6 kg
Number of axis: 6
Maximum horizontal reach: 1350 mm
Repeatability: ± 0.1 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [Ø 1350 x 500] in mm by height in mm
Axis J4: 720°
Axis J5: 300°
Axis J6: 720°
