Fanuc M-20iA/35M
Fanuc M-20iA/35M

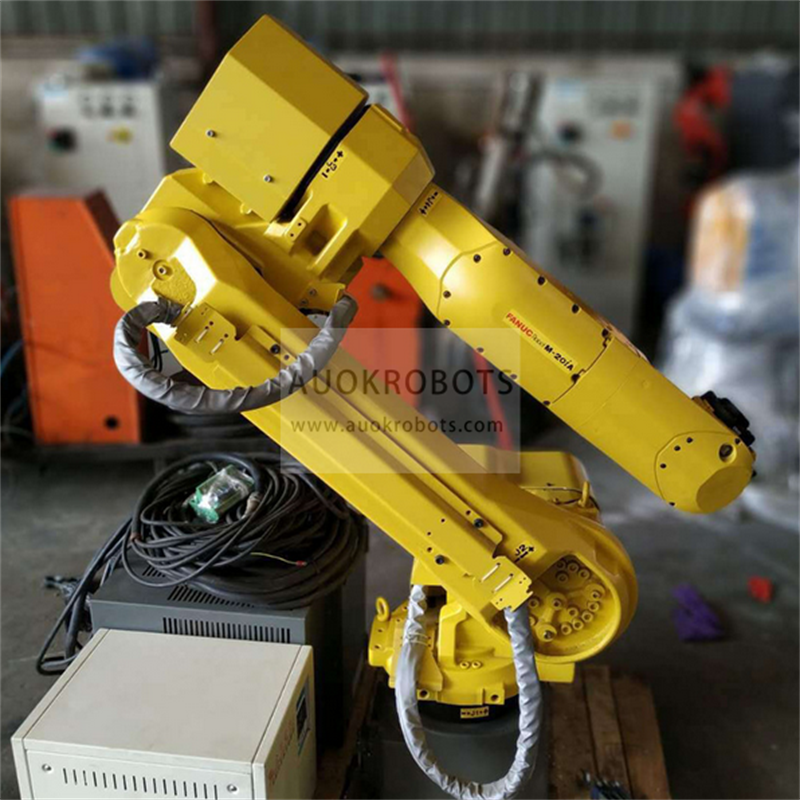

The M-20 series of Fanuc arm and wrist hollow design specialized in multi-purpose work, this series is characterized by its useful load capacity, arm reach and speed. can handle up to a load of 35 kg with optimal performance, ideal for handling applications of different materials, They have a shelf on the back of the arm that provides easy installation of the peripheral equipment.
Main specifications
Maximum Load of Robot: 35 kg
Number of axis: 6
Maximum horizontal reach: 1813 mm
Repeatability: ± 0.03mm
Controller: R30iB
Motion range (°)
Axis J1: 370°
Axis J2: 260°
Axis J3: 461,0°
Axis J4: 400°
Axis J5: 280°
Axis J6: 900°
Maximum Load of Robot: 35 kg
Number of axis: 6
Maximum horizontal reach: 1813 mm
Repeatability: ± 0.03mm
Controller: R30iB
Motion range (°)
Axis J1: 370°
Axis J2: 260°
Axis J3: 461,0°
Axis J4: 400°
Axis J5: 280°
Axis J6: 900°
