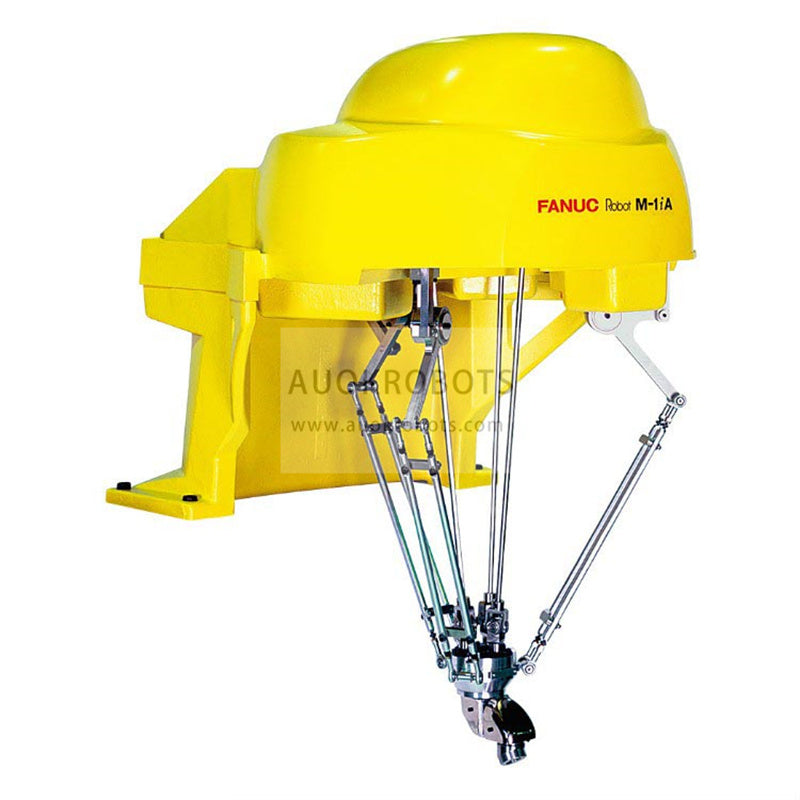

Fanuc M-1iA/0.5AL
Fanuc M-1iA/0.5AL
Fanuc M-1iA series designed for handling small parts that adapt perfectly to high-speed processes that require great versatility, the structure of these robots are ultralijeros and compact, ideal for integration into machines or production lines where space is limited. It comes in a 3, 4 or 6 axis version offering optimum productivity in tasks of electronics, fine mechanics, food or medicine-pharmaceutical.
Main specifications
Maximum Load of Robot: 0.5 kg
Number of axis: 6
Maximum horizontal reach: 420 mm
Repeatability: ± 0.03 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [ Ø 420 x 150] in mm by height in mm
Axis J4: 720°
Axis J5: 300°
Axis J6: 720°
Maximum Load of Robot: 0.5 kg
Number of axis: 6
Maximum horizontal reach: 420 mm
Repeatability: ± 0.03 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [ Ø 420 x 150] in mm by height in mm
Axis J4: 720°
Axis J5: 300°
Axis J6: 720°
![Fanuc M-1iA/0.5AL](http://auokrobots.com/cdn/shop/products/11-32-42-89-27744_04b4f819-9ee9-414b-ba0b-be3a538e0aa1.jpg?v=1675393579&width=1445)
