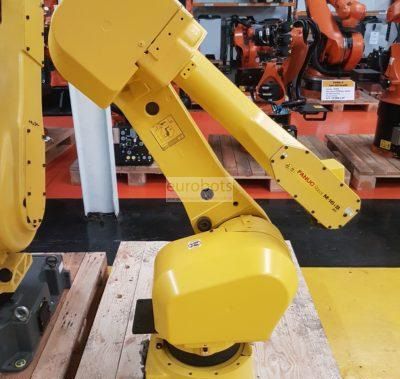

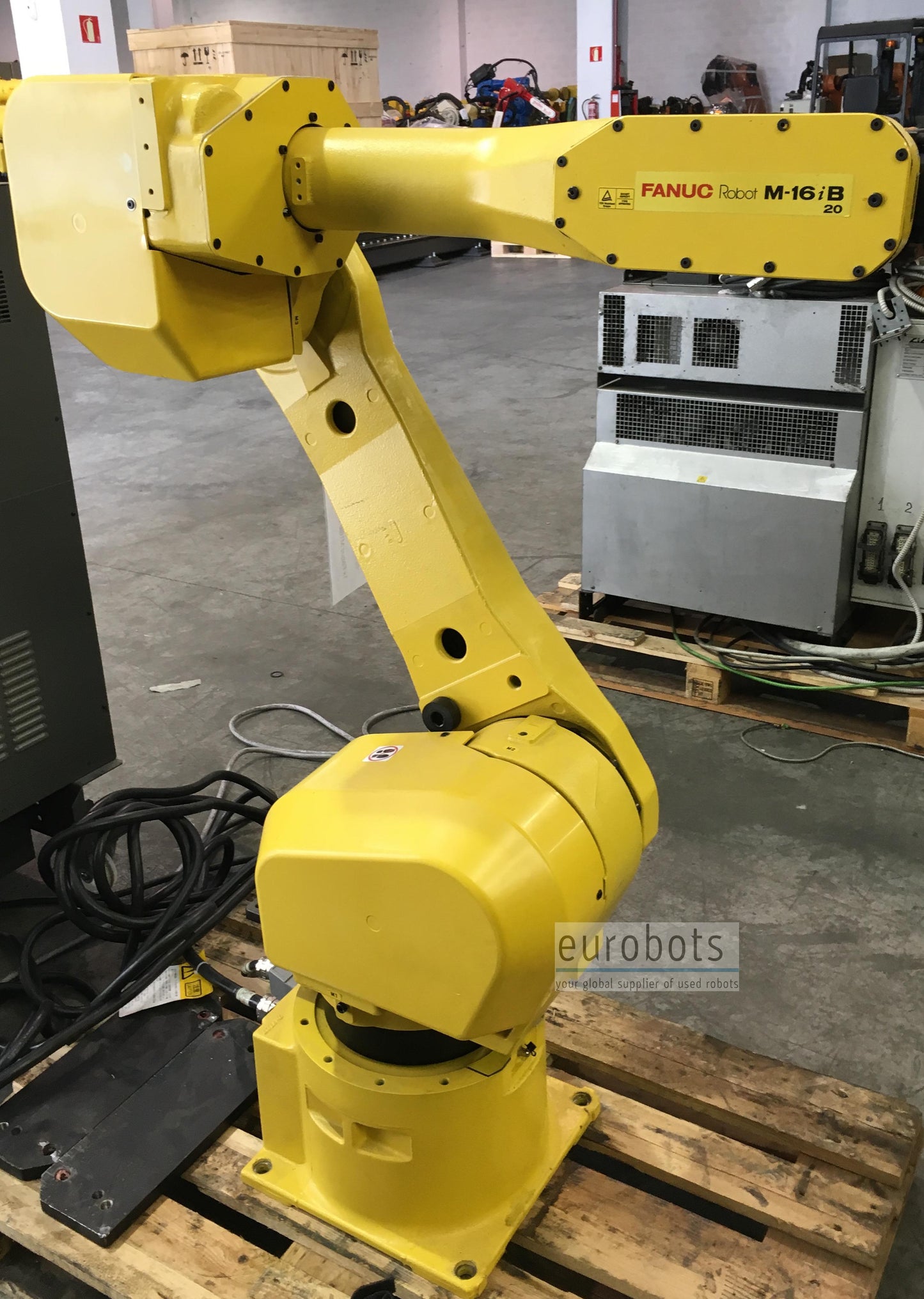

Fanuc M-16iB/20
Fanuc M-16iB/20
Low payload, 20kg, 6 axis industrial robot. Typically used for handling, extraction of parts from injection machines, machining, etc...
The powerful and user friendly R-30iA control system makes this robot one of the most popular ones in its range.
The FANUC M-16iB is a six-axis, modular construction, electric servo-driven robot designed for a variety of industrial applications. Based on its simple and reliable construction, the FANUC M16i provides sophisticated motion control and consistent performance with high productivity.
General specifications
- Number of axis: 6
- Maximum Load of Robot: 20 kg
- Maximum horizontal arm reach: 1667 mm
- Repeatability: ±0.08 mm
- Controller: R-30iA
Robot motion speed
- Axis 1: 165°/s
- Axis 2: 165°/s
- Axis 3: 175°/s
- Axis 4: 350°/s
- Axis 5: 340°/s
- Axis 6: 520°/s
Robot motion range
- Axis 1: ±170°
- Axis 2: +160° -90°
- Axis 3: +290° -170°
- Axis 4: ±200°
- Axis 5: ±140°
- Axis 6: ±450°
Robot applications
- General handling
- Machining
- Dispensing
- Machine loading
- Arc welding
