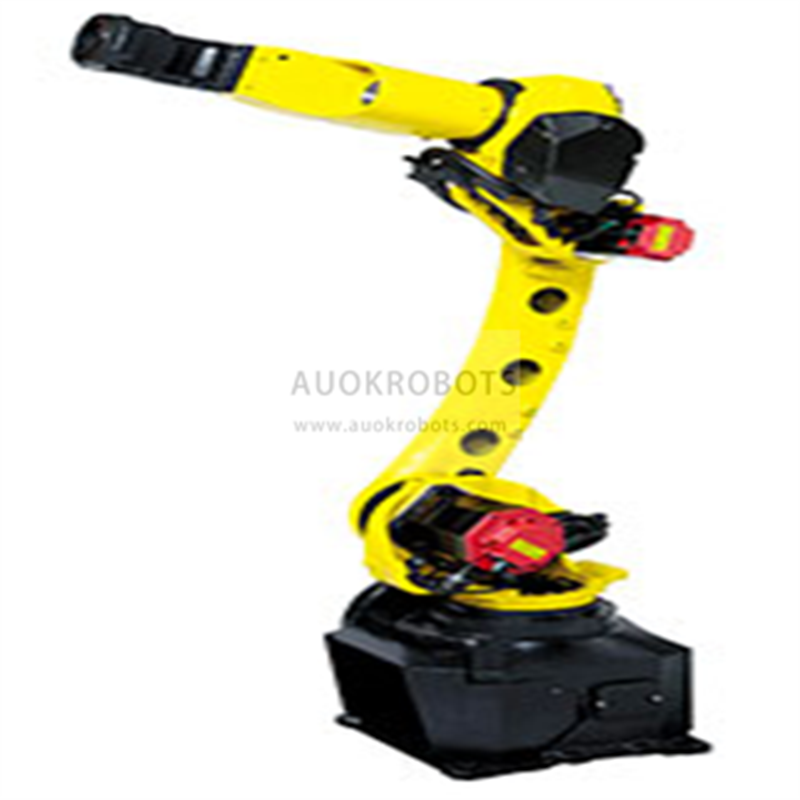

Fanuc M-10iA/8L

Fanuc M-10iA/8L

The M-0iA / 8L industrial robot characterized by its high speed of inertia, load capacity and range, ideal for handling heavy parts, its light arm that offers up to 30% reduction in energy consumption and 20% interference reduction.

The Fanuc M-10 series, specialized in articulated robots for light load handling, has a thin, hollow wrist that offers greater work space, ease of integration into work cells, and internal wiring to avoid interference with other devices. Robot series provides improved cycle times, high performance and is ideal for applications of collection, pick and place and machine tending.

R-30iB control system
Main specifications

Maximum Load of Robot: 8 kg
Number of axis: 6
Maximum horizontal reach: 2028 mm
Repeatability: ± 0.04 mm
Controller: R30iB

Motion range (°)

Axis J1: 340° (370°
Axis J2: 255°
Axis J3: 462°
Axis J4: 400°
Axis J5: 280° (360)°
Axis J6: 540°(900)°
