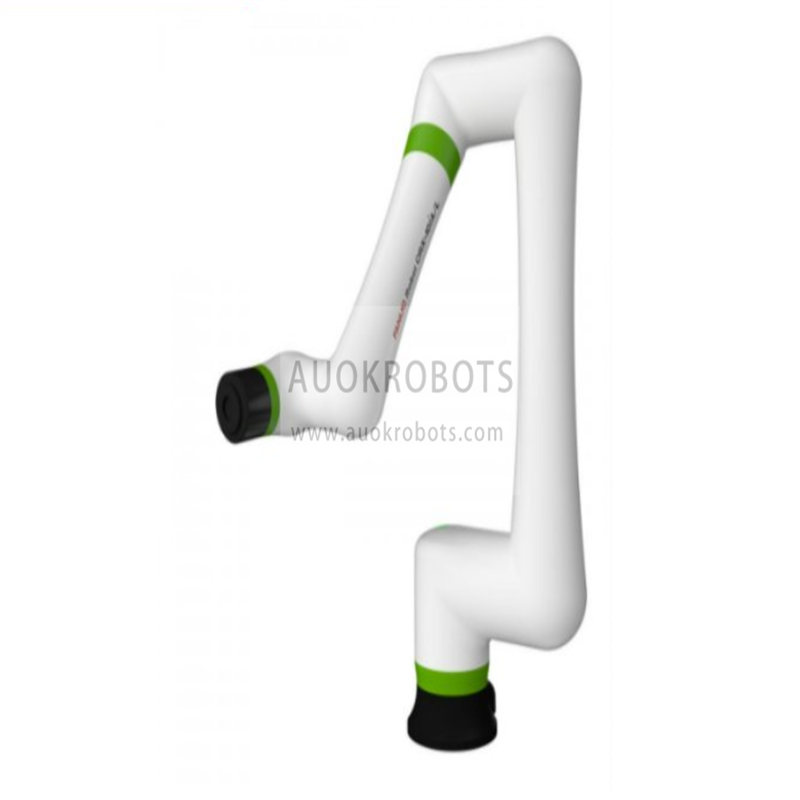

Fanuc CRX 10iA / L

Fanuc CRX 10iA / L

Weighing only 39 kilograms, the arm of the smoothly designed shiny white robot can perform a highly functional underflip motion to pick a part from a table in front it and put the part on the table behind it in one single, smooth motion.

The CRX-10iA/L is highly protected against dust or oil leakages common in industrial environments and fully complies with ISO 10218-1 safety standards.

The CRX features the same reliable safety features as our other collaborative robots: Its sensors are sensitive and trigger an immediate safety stop at the touch of a human body: Contact stop funtion.

Easy to connect: Integrate third party peripheral devices easily with FANUC approved End of Arm Tooling (EOAT), accessories and plugins.

Main specifications

Maximum Load of Robot: 10Kg
Number of axis: 6
Maximum horizontal reach: 1418 mm
Repeatability:  ± 0.04
Controller: R- 30iB

Motion range (°)

Axis 1: 360°
Axis 2: 360°
Axis 3: 540°
Axis 4: 380°
Axis 5: 360°
Axis 6: 450°

Maximum speed (°/s)

Axis 1: 120°/s
Axis 2: 120°/s
Axis 3: 180°/s
Axis 4: 180°/s
Axis 5: 180°/s
Axis 6: 180°/s
