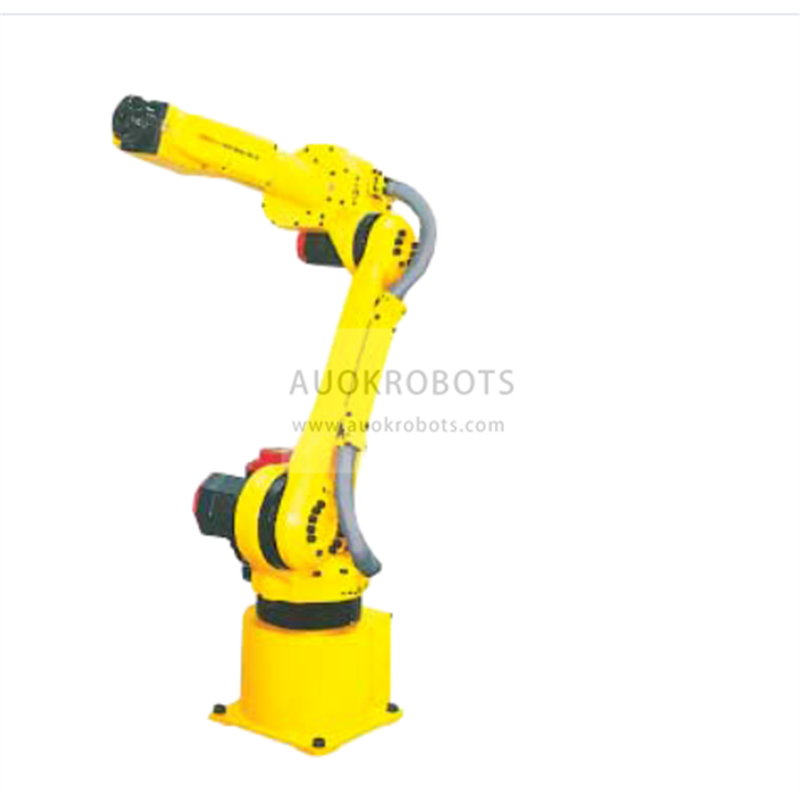

Fanuc Arcmate 120i Rj2

Fanuc Arcmate 120i Rj2

This Arcmate year 1999 is equipped with the powerful RJ2 controller.
The flexible Fanuc ArcMate 120i is a six-axis, electric servo-driven robot capable of precise high-speed welding and cutting. Accuracy and performance are designed into the ArcMate 120i for all your welding and cutting requirements.


Features:

* Compatible with all major brands of welding equipment
* Interfaces with most types of servo driven or indexing positioners
* Sealed bearings and drives provide protection and improve reliability
* Integrated controller reduces footprint and eliminates exposed connection cables
* cable routing through center of axis rotation improves reliability



Robot Info:

  • Maximum Load of Robot: 16Kg.
  • Maximum Reach: 1542 mm.
  • Repeatability: 0,08 mm.
  • Controller: RJ2

Robot Motion Speed:

  • Axis 1: 140º/seg
  • Axis 2: 140º/seg
  • Axis 3: 140º/seg
  • Axis 4: 330º/seg
  • Axis 5: 330º/seg
  • Axis 6: 450º/seg

Robot Applications:

  • Welding
  • Machining
  • Machine tending
  • Polishing, grinding and deburring
  • Coating and bonding
  • Handling
  • Measuring and testing
  • Assembly
  • Palletizing and order picking
  • Cutting
