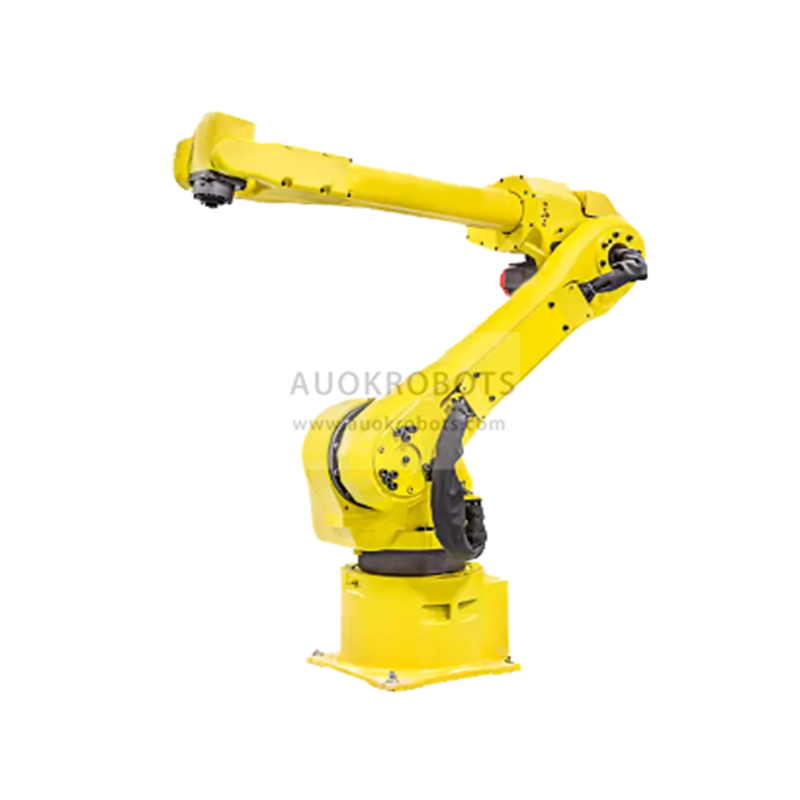

Fanuc Arcmate 100iB

Fanuc Arcmate 100iB

Information Specifications

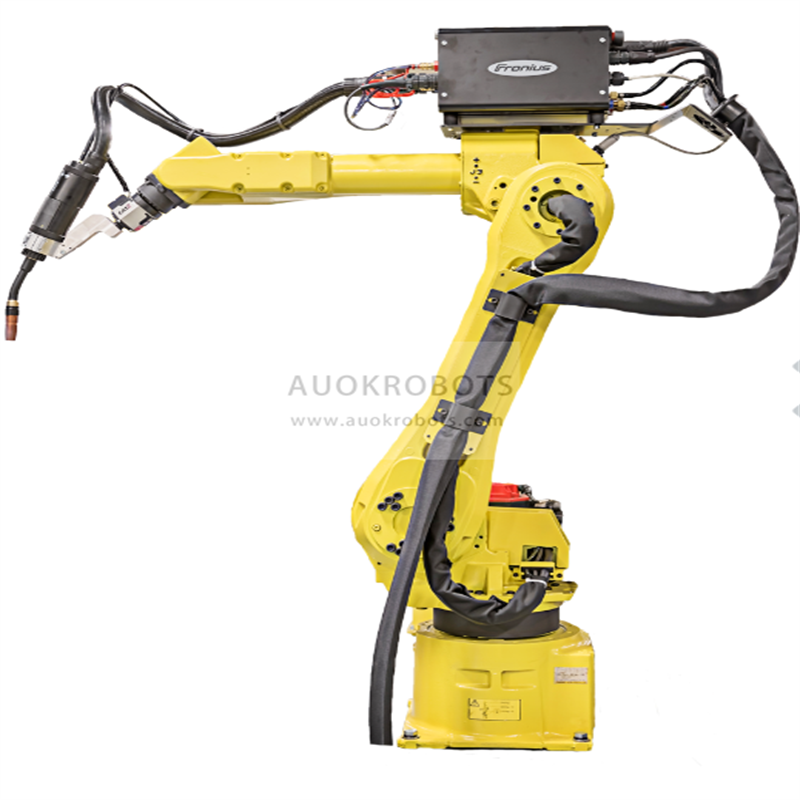

The Fanuc Arcmate 100iB is suitable for arc welding and general handling applications.

Robot technical specifications

  • Number of axis: 6
  • Maximum Load of Robot: 6kg
  • Maximum Reach: 1373 mm
  • Repeatability: ±0.08 mm
  • Controller: RJ3iB

Robot Motion Speed

  • Axis 1: 150º/s
  • Axis 2: 160º/s
  • Axis 3: 170º/s
  • Axis 4: 400º/s
  • Axis 5: 400º/s
  • Axis 6: 520º/s

Robot Motion Range

  • Axis 1: 340°
  • Axis 2: 250°
  • Axis 3: 315°
  • Axis 4: 380°
  • Axis 5: 280°
  • Axis 6: 720°
