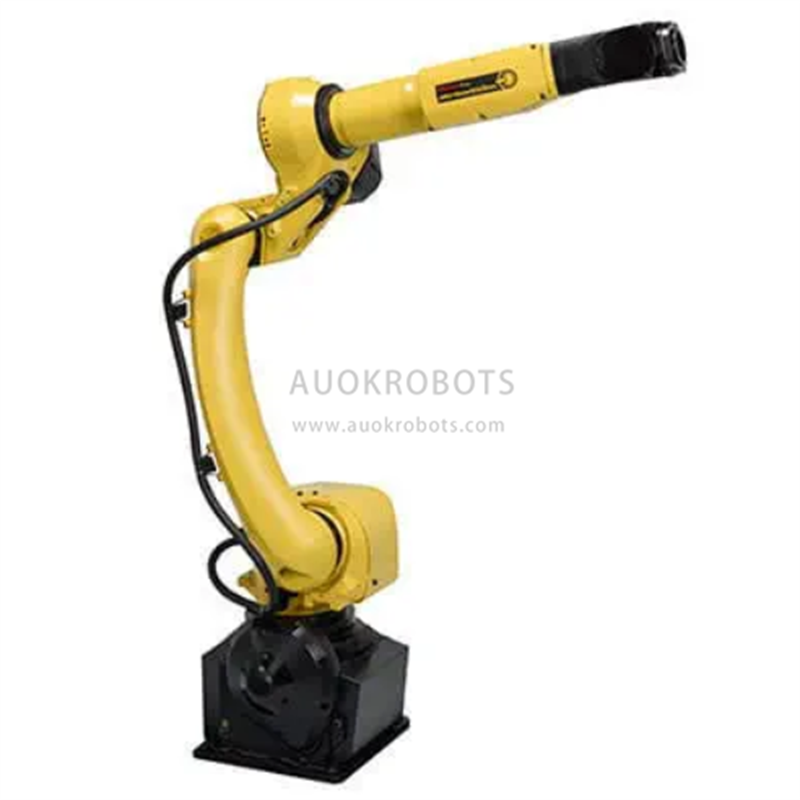

Fanuc ARC Mate 100iD/10L

Fanuc ARC Mate 100iD/10L

ARC Mate 100iD/10L, extremely adaptable arc welding robot, designed particularly for confined installations, can work with rather big components owing to its extended horizontal motion and may be installed at an angle or inverted.The ARC Mate 100iD series' extended arm variant features remarkable speed and precision.

Installation in tight places is a breeze. This arc welding robot makes it simple to wire welding wires and accurate tracking sensors all around the robot. Improves overall system dependability and simplicity of use by removing robot interference with its surroundings and cell work equipment.

R-30iB control system

Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.

Main specifications
Maximum Load of Robot: 10 kg
Number of axis: 6
Maximum horizontal reach: 1636 mm
Repeatability: ± 0.03 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 340° (370° with hardware and/or software option)
Axis J2: 235°
Axis J3: 455°
Axis J4: 380°
Axis J5: 360°
Axis J6: 900°

Maximum speed (°/s)
Axis J1: 260°/s
Axis J2: 240°/s
Axis J3: 260°/s
Axis J4: 430°/s
Axis J5: 450°/s
Axis J6: 720°/s

Robot applications

ARC Welding
