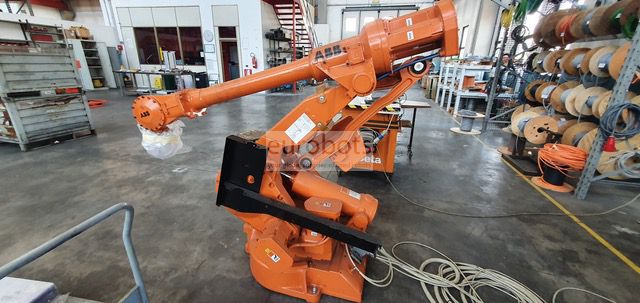

ABB IRB 4400L30

ABB IRB 4400L30

Long arm version of the IRB4400 with 2432 mm horizontal arm reach. An extremely fast, compact robot for medium to heavy handling. Exceptional all-round capabilities make it suitable for a variety of manufacturing applications.

A rigid, well-balanced design and patented TrueMove function provide smooth and fast movement throughout the entire working range. This ensures very high quality in applications such as cutting. Rapid maneuverability makes the IRB 4400 perfectly matched for applications where speed and flexibility are important.

The robust, rigid construction means long intervals between routine maintenance. Well-balanced steel arms with double bearing joints, a torque-strut on axis 2 and use of maintenance-free gearboxes and cabling also contribute to the very high levels of reliability.

The drive train is optimized to give high torque with the lowest power consumption for economic operation.

The S4CPlus controller enables extensive communication for easy integration

The extensive communication capabilities include serial links, network interfaces, PLC, remote I/O and field bus interfaces. This makes integration easy in small manufacturing stations as well as large scale factory automation systems.

Robot Info:

  • Number of axis: 6
  • Maximum Load of Robot: 30 Kg.
  • Maximum Reach: 2432 mm.
  • Repeatability: 0,1 mm.
  • Controller: M2000 S4CPlus.

Robot Motion Speed:

  • Axis 1: 150º/seg
  • Axis 2: 120º/seg
  • Axis 3: 120º/seg
  • Axis 4: 225º/seg
  • Axis 5: 250º/seg
  • Axis 6: 330º/seg
