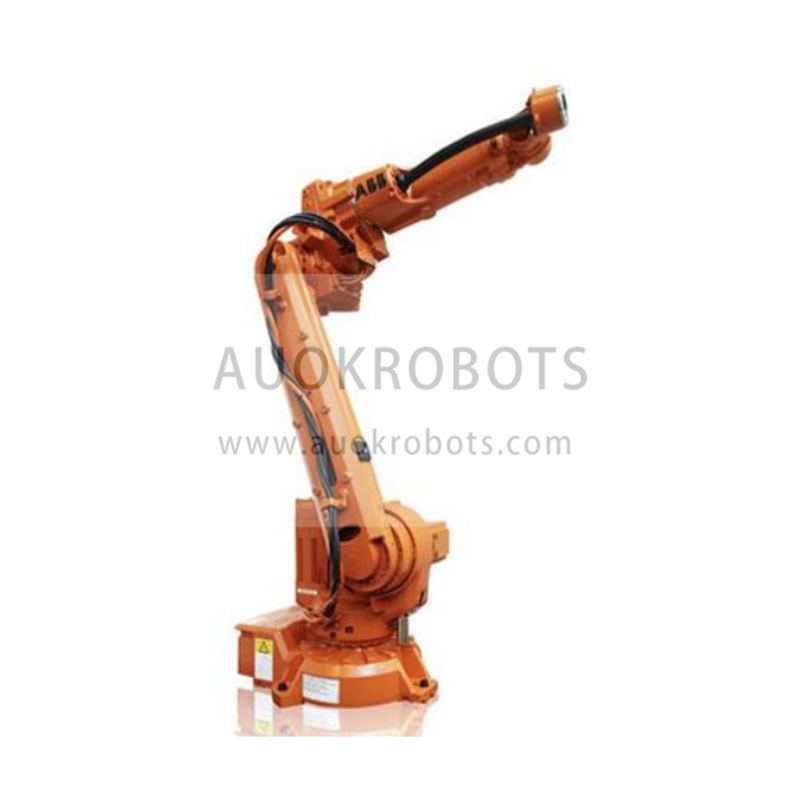

ABB IRB 2600ID
ABB IRB 2600ID
The compact design IRB 2600ID offers two versions one with 15kg payload and 1.85m reach, and another with 8kg payload with a reach of 2m, with standard IP67 protection, one of the main features of the IRB 2600ID Is the access to narrow slots and can perform complex movements without interruptions in short cycle times and preserving the quality of the process thanks to its narrow wrist and integrated wiring giving us a fast and reliable robot.
Equipped with the latest IRC5 controller.
Main features |
|
Variants 1/IRB 2600ID-15/1.85m | Variants 2/IRB 2600ID-8/2.00m |
Maximum Load of Robot: 15 kg | Maximum Load of Robot: 8 kg |
Maximum Reach: 1.85m | Maximum Reach: 2.00m |
Repeatability: 0.023 - 0.026 mm | Repeatability: 0.023 - 0.026 mm |
Path repeatability: 0.27 - 0.30 mm | Path repeatability: 0.27 - 0.30 mm |
Controller variants: IRC5 Single cabinet, Dual cabinet | Controller variants: IRC5 Single cabinet, Dual cabinet controller |
Robot Motion Speed
Axis 1: 175°/s
Axis 2: 175°/s
Axis 3: 175°/s
Axis 4: 360°/s
Axis 5: 360°/s
Axis 6: 500°/s
Axis 2: 175°/s
Axis 3: 175°/s
Axis 4: 360°/s
Axis 5: 360°/s
Axis 6: 500°/s
